NTCASCWE3102J
ActiveVishay Dale
THERMISTOR NTC 1KOHM 3528K STUD
NTCASCWE3102J
ActiveVishay Dale
THERMISTOR NTC 1KOHM 3528K STUD
Description
General part information
NTCASCWE3102J

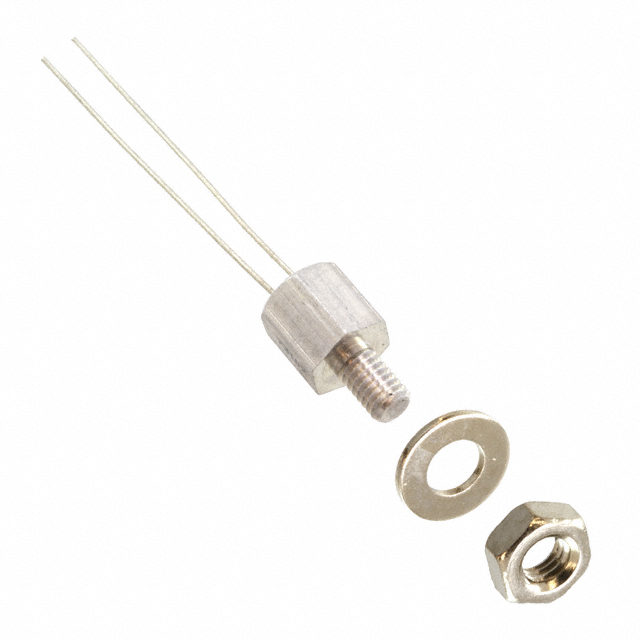

NTC Thermistor 1k Nonstandard, Threaded Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCASCWE3102J |
|---|---|
| B Value (25/85) | 3528 K |
| B Value Tolerance | 0.5 % |
| Length - Lead Wire | 1.46 in |
| Mounting Type | Panel Mount, Channel Mount, Channel Mount or Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard, Threaded Stud |
| Power - Max | 0.5 W |
| Resistance (Ohms) | 1 kOhm |
| Resistance Tolerance (%) | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
