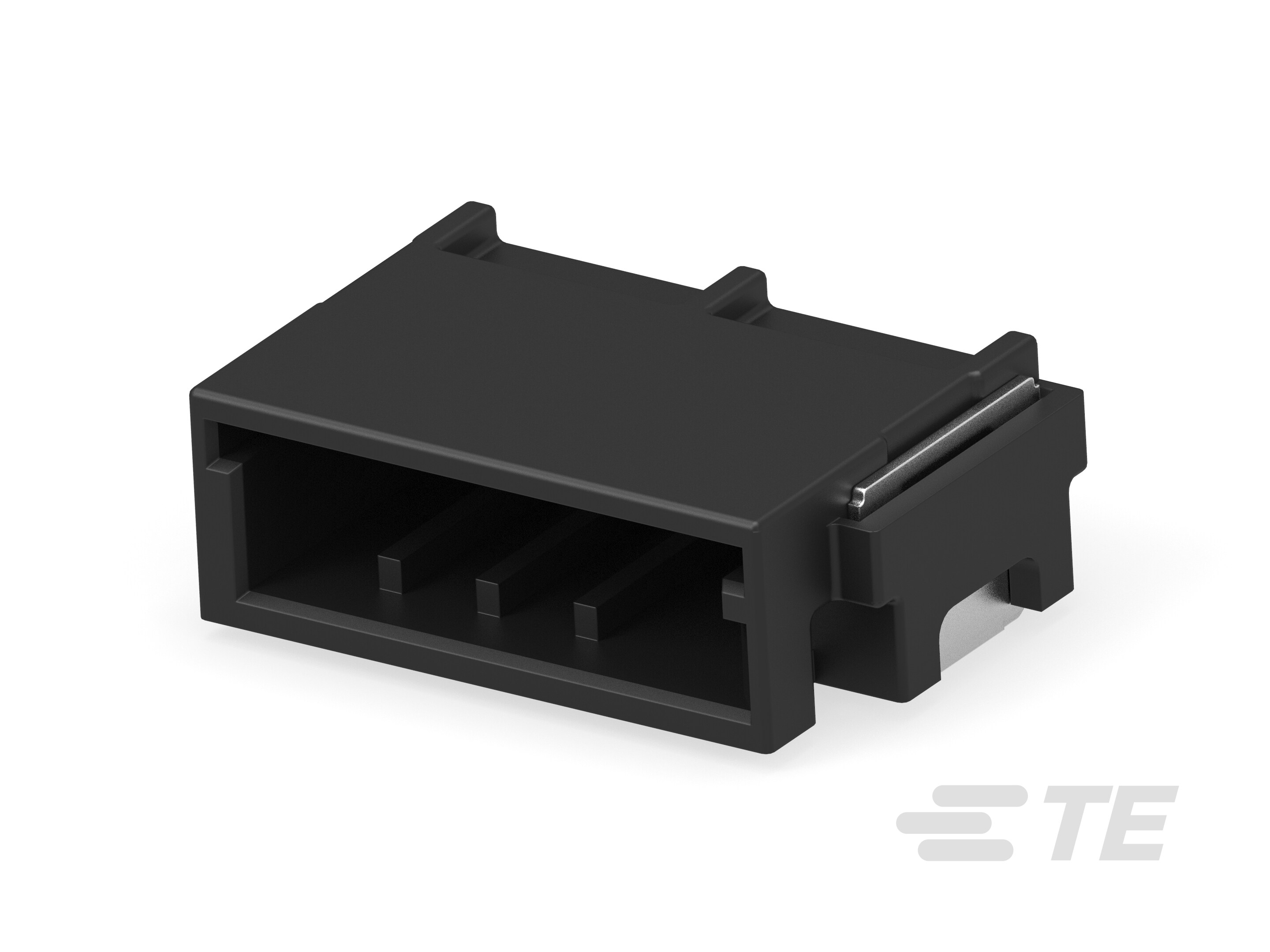

8POS,TAB0.5X0.4,HEADER ASSY,90 DEG-2323103-8

2323103-8

Active
TE Connectivity AMP Connectors

AUTOMOTIVE CONN, R/A HDR, 8POS, 2A ROHS COMPLIANT: YES

Find alt
8POS,TAB0.5X0.4,HEADER ASSY,90 DEG-2323103-8

2323103-8

Active
TE Connectivity AMP Connectors

AUTOMOTIVE CONN, R/A HDR, 8POS, 2A ROHS COMPLIANT: YES

Find alt

Description

General part information

2323103-8

Vertical, Wire-to-Board, 8 Position, 1 Rows, 1.27mm [.05in] Centerline, Tin (Sn), Printed Circuit Board, 2A Contact Current Rating (Max), Signal

Technical Specifications

Parameters and characteristics for this part

Specification2323103-8
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating39.4 µin
Contact Length - Mating0.157 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeDetent Lock
FeaturesSolder Retention, Pick and Place
Insulation ColorBlack
Insulation Height0.235 in
Insulation MaterialNylon 4T, Polyamide (PA4T), Glass Filled
Material Flammability RatingUL94 HB
Mounting TypeRight Angle, Surface Mount
Number of Positions8
Number of Positions LoadedAll
Number of Rows1
Pitch - Mating0.05 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
