WKV 81
ActiveLumberg Inc

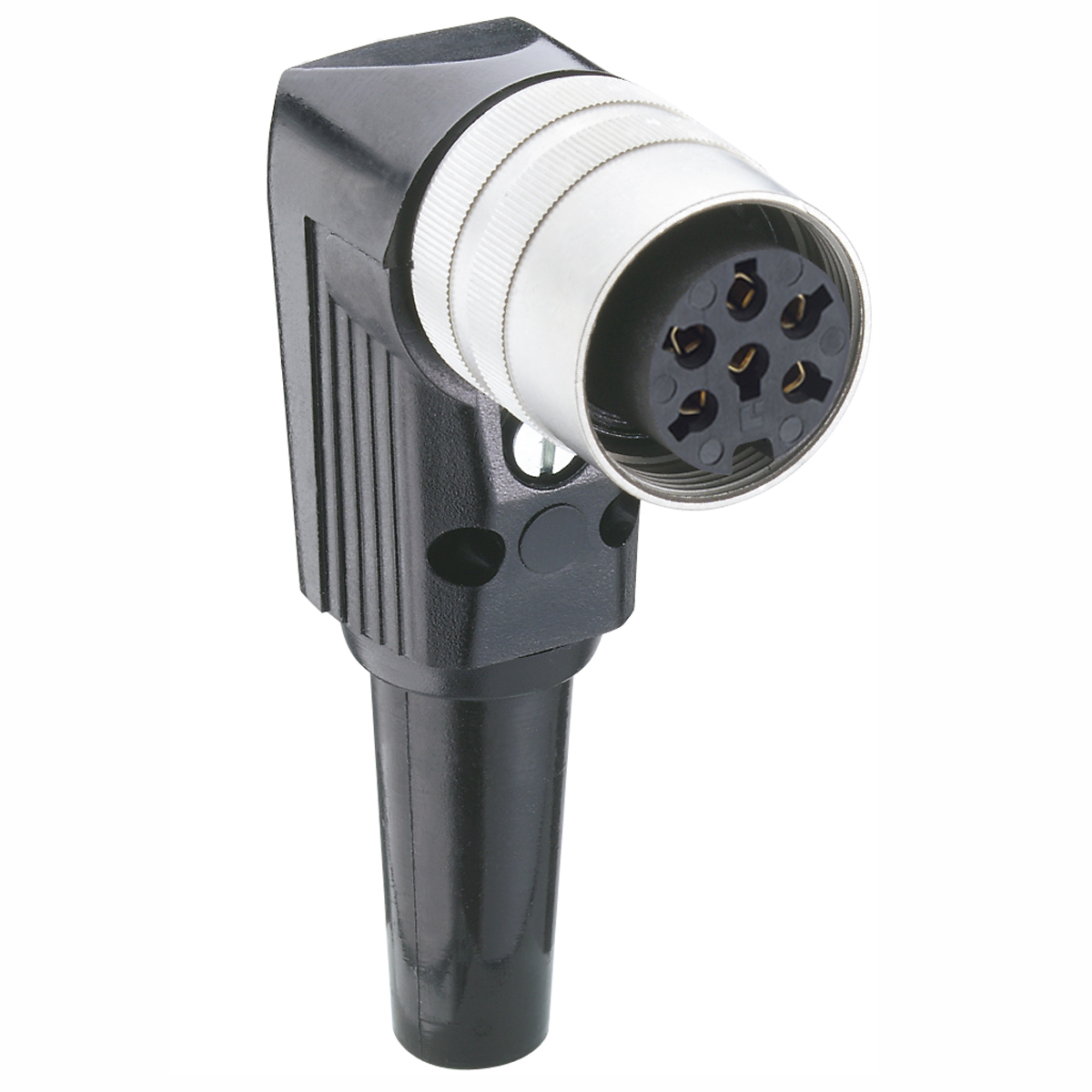

IP 40 SOCKET CABLE MOUNT ANGULAR
WKV 81
ActiveLumberg Inc
IP 40 SOCKET CABLE MOUNT ANGULAR
Description
General part information
WKV 81
8 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | WKV 81 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Features | Strain Relief |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Plastic |
| Shell Finish | Nickel |
| Shell Size - Insert | M16 |
| Termination | Solder |
