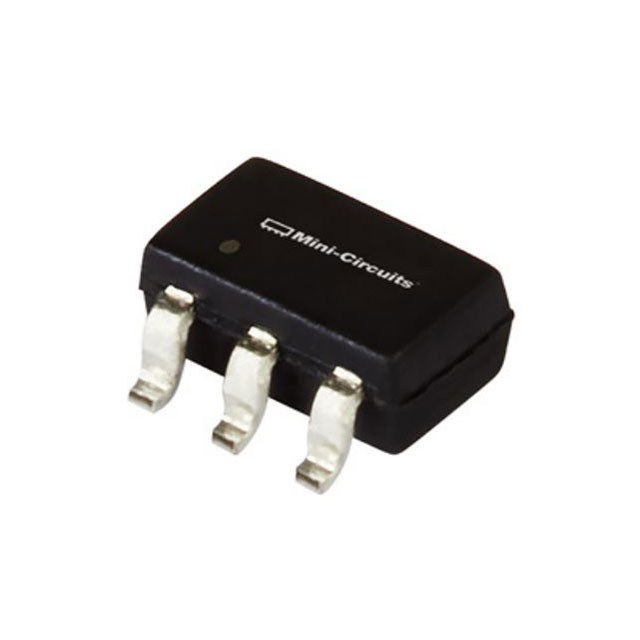

PSA-0012+
ActiveMini-Circuits
IC AMP CELL 50MHZ-6GHZ SC70-6
PSA-0012+
ActiveMini-Circuits
IC AMP CELL 50MHZ-6GHZ SC70-6
Description
General part information
PSA-0012+
RF Amplifier IC Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN 50MHz ~ 6GHz SC-70-6
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA-0012+ |
|---|---|
| Current - Supply | 74 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 50 MHz |
| Gain | 9.1 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 3.6 dB |
| P1dB | 22.1 dBm |
| Package / Case | 6-VSSOP, SOT-363, SC-88 |
| Package Name | SC-70-6 |
| RF Type | WLAN, ISM, WCDMA, Cellular, GSM, LTE, WiMAX |
| Test Frequency (Maximum) | 4 GHz |
| Test Frequency (Minimum) | 3 GHz |
| Voltage - Supply | 5 VDC |
