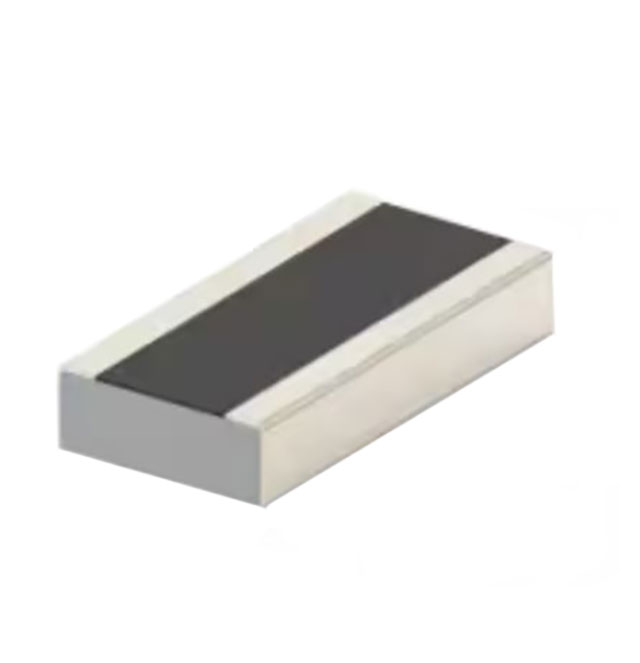

Specification	RLW73B2FR27TD

Composition	Thick Film
Features	Current Sense
Height - Seated (Max)	0.028 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0612, Wide 1206 (3216 Metric)
Package Name	0612
Power (Watts)	750 mW
Power (Watts) Options	3/4W
Resistance	270 mOhms
Size / Dimension Length	0.063 in
Size / Dimension Width	0.126 in
Supplier Device Package	0612
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

CGS RLW73 Series

...

Part	Number of Terminations	Tolerance	Features	Composition	Height - Seated (Max)	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Power (Watts)	Power (Watts) Options	Temperature Coefficient	Package Name	Supplier Device Package	Resistance
TE Connectivity AMP Connectors RLW73B2FR10TDF	2	1 %	Current Sense	Thick Film	0.028 in	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.126 in	0.063 in	750 mW	3/4W	200 ppm/°C	0612	0612	100 mOhms
TE Connectivity AMP Connectors RLW73PB2FR15TD	2	1 %	Current Sense	Thick Film	0.028 in	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.126 in	0.063 in	1.5 W		200 ppm/°C	0612	0612	0.15 Ohms
TE Connectivity AMP Connectors RLW73PA3FR10TDF	2	1 %	Current Sense	Thick Film	0.028 in	1225 Wide 2512 (6432 Metric)	155 °C	-55 °C	0.248 in	0.122 in	3 W		200 ppm/°C	1225	1225	100 mOhms
TE Connectivity AMP Connectors RLW73PH2FR015TDF	2	1 %	Current Sense	Thick Film	0.028 in	1020 Wide 2010 (5025 Metric)	155 °C	-55 °C	0.197 in	0.098 in	2 w		600 ppm/°C	1020		15 mOhms
TE Connectivity AMP Connectors RLW73PH2FR47TDF	2	1 %	Current Sense	Thick Film	0.028 in	1020 Wide 2010 (5025 Metric)	155 °C	-55 °C	0.197 in	0.098 in	2 w		200 ppm/°C	1020		470 mOhms
TE Connectivity AMP Connectors RLW73A3FR12TDF	2	1 %	Current Sense	Thick Film	0.028 in	1225 Wide 2512 (6432 Metric)	155 °C	-55 °C	0.248 in	0.122 in	1.5 W		200 ppm/°C	1225	1225	0.12 Ohms
TE Connectivity AMP Connectors RLW73H2FR068TDF	2	1 %	Current Sense	Thick Film	0.028 in	1020 Wide 2010 (5025 Metric)	155 °C	-55 °C	0.197 in	0.098 in	1 W		200 ppm/°C	1020		0.068 Ohms
TE Connectivity AMP Connectors RLW73PA2FR39TD	2	1 %	Current Sense	Thick Film	0.028 in	0508 Wide 0805 (2012 Metric)	155 °C	-55 °C	0.079 in	0.049 in	1 W		200 ppm/°C	0508		390 mOhms
TE Connectivity AMP Connectors RLW73PA3FR10TE	2	1 %	Current Sense	Thick Film	0.028 in	1225 Wide 2512 (6432 Metric)	155 °C	-55 °C	0.248 in	0.122 in	3 W		200 ppm/°C	1225	1225	100 mOhms
TE Connectivity AMP Connectors RLW73PA2FR18TDF	2	1 %	Current Sense	Thick Film	0.028 in	0508 Wide 0805 (2012 Metric)	155 °C	-55 °C	0.079 in	0.049 in	1 W		200 ppm/°C	0508		0.18 Ohms
