Description
General part information

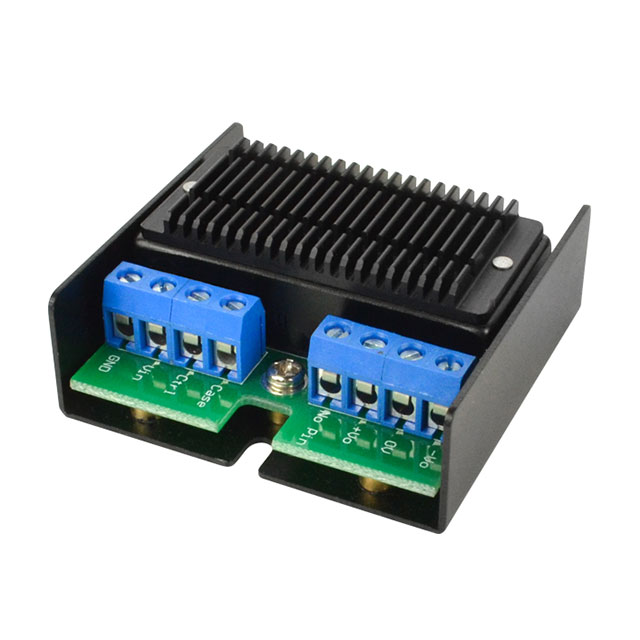

PYB30-Q24-S15-H-U
Enclosed DC DC Converter 1 Output 15V 2A 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PYB30-Q24-S15-H-U |
|---|---|
| Approval Agency | EN, IEC |
| Current - Output (Max) | 2 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.9 in |
| Size / Dimension Length | 2.66 in |
| Size / Dimension Width | 2.17 in |
| Type | Enclosed |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
