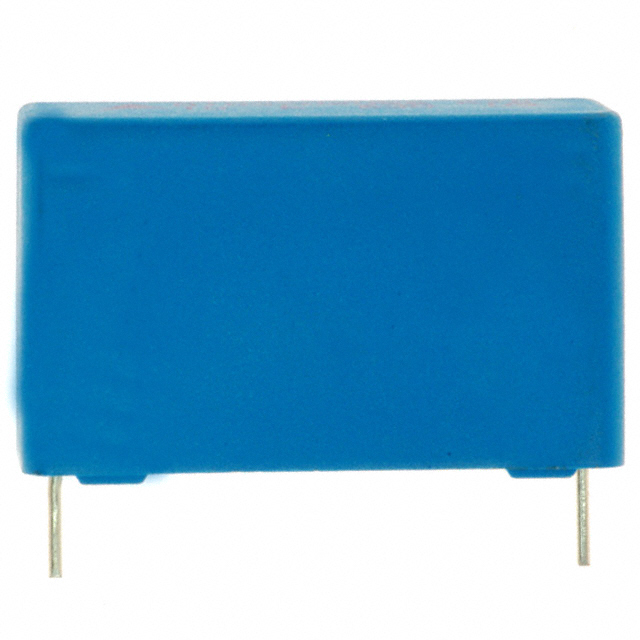

B32672L8622J000
ActiveEPCOS - TDK Electronics
CAP FILM 6200PF 5% 2KVDC RADIAL
B32672L8622J000
ActiveEPCOS - TDK Electronics
CAP FILM 6200PF 5% 2KVDC RADIAL
Description
General part information
B32672L8622J000
6200 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32672L8622J000 |
|---|---|
| Applications | High Frequency, Switching, High Pulse, DV/DT |
| Capacitance | 6200 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 2 kVDC |
