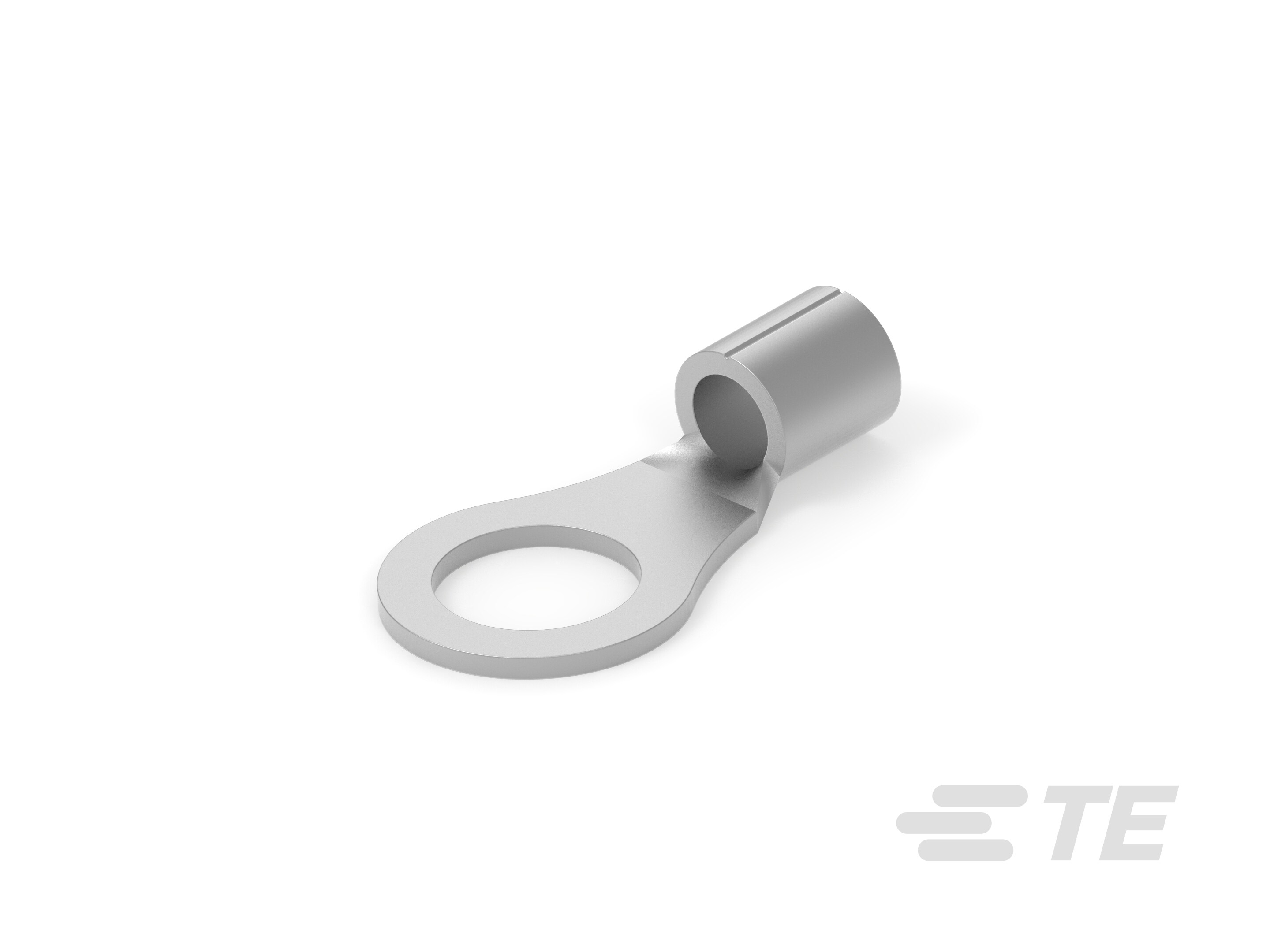

TERMINAL, SOLIS R 8 3/8-2-33463-4

2-33463-4

Active
TE Connectivity AMP Connectors

CONN RING CIRC 8AWG #3/8 CRIMP

Find alt
TERMINAL, SOLIS R 8 3/8-2-33463-4

2-33463-4

Active
TE Connectivity AMP Connectors

CONN RING CIRC 8AWG #3/8 CRIMP

Find alt

Description

General part information

2-33463-4

Closed Ring Tongue Terminal, 8 AWG, 3/8 Stud, 9.53 mm / 9.91 mm [.39 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification2-33463-4
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall1.168 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.375 in
Stud/Tab Size3 Stud, 8 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.594 in
Wire Gauge8 AWG
