321871-2
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 2/0AWG #3/8 CRIMP
321871-2
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 2/0AWG #3/8 CRIMP
Description
General part information
321871-2

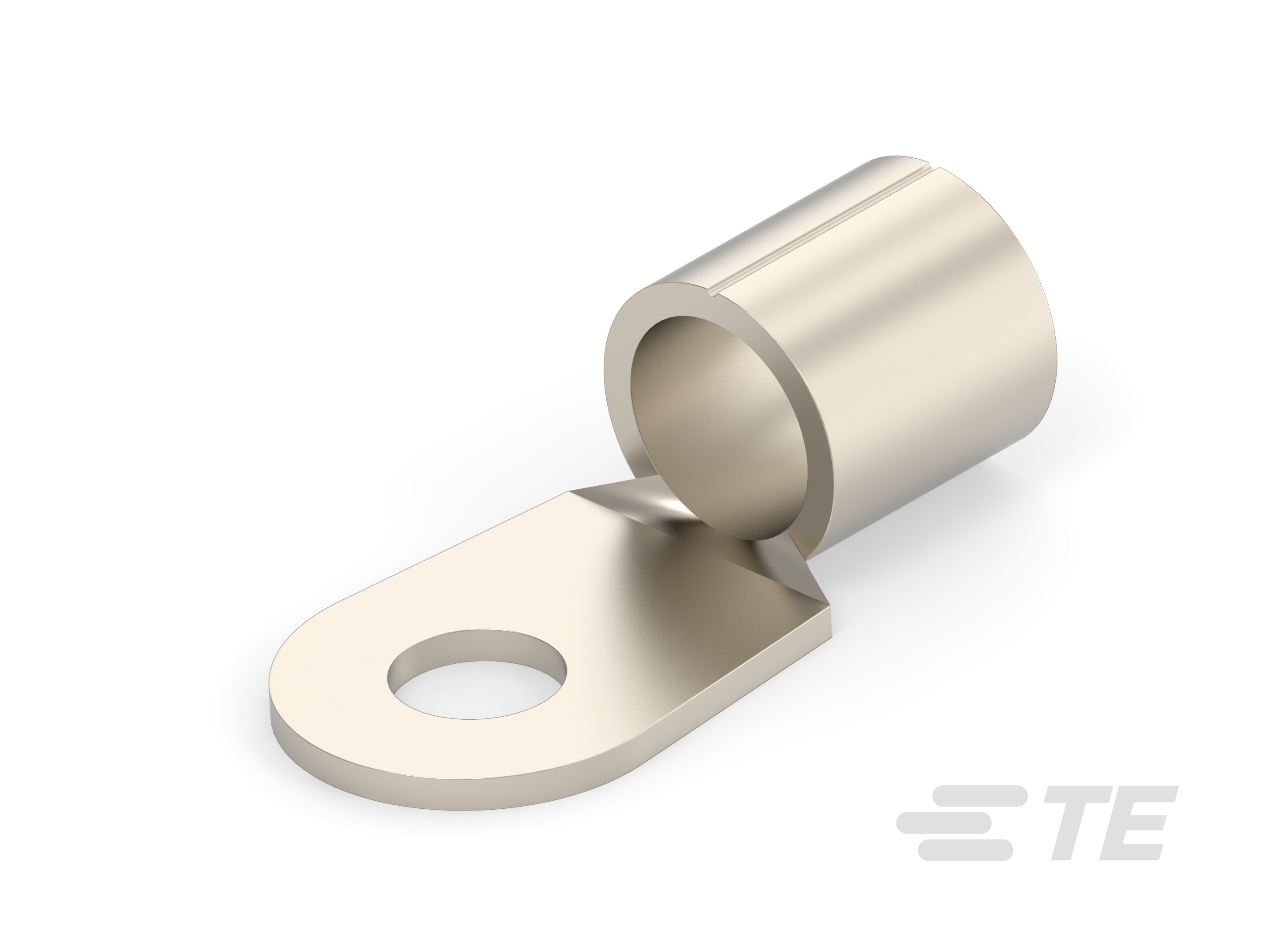

Closed Ring Tongue Terminal, 2/0 AWG, 3/8 Stud, 9.91 mm [.39 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 321871-2 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Copper |
| Features | Serrated Termination, Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 1.93 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.08 in |
| Width - Outer Edges | 0.926 in |
| Wire Gauge | 2/0 AWG |
