MAL204381339E3
ActiveVishay Dale

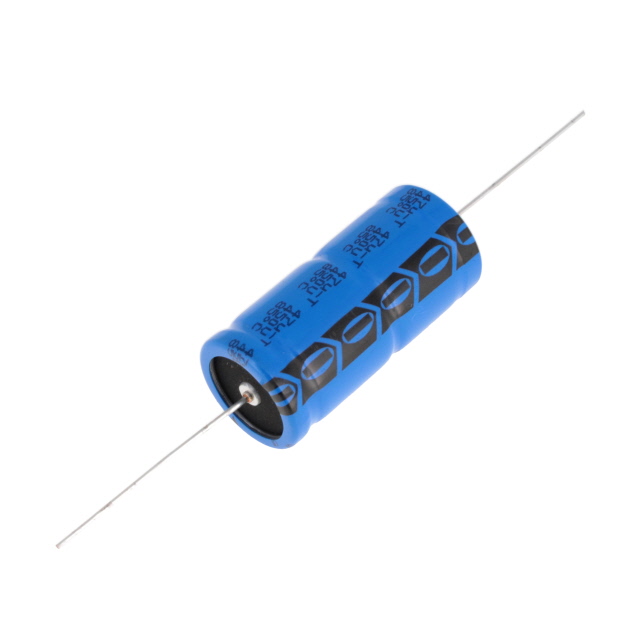

CAP ALUM 33UF 450V AXIAL TH
MAL204381339E3
ActiveVishay Dale
CAP ALUM 33UF 450V AXIAL TH
Description
General part information
MAL204381339E3
33 µF 450 V Aluminum Electrolytic Capacitors Axial, Can 1.7Ohm @ 100Hz 20000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL204381339E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 1.7 Ohm |
| Impedance | 1 Ohms |
| Lifetime | 20000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 483 mA |
| Size / Dimension Diameter | 0.709 in |
| Size / Dimension Length | 1.496 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
