3-175778-2
ActiveTE Connectivity AMP Connectors

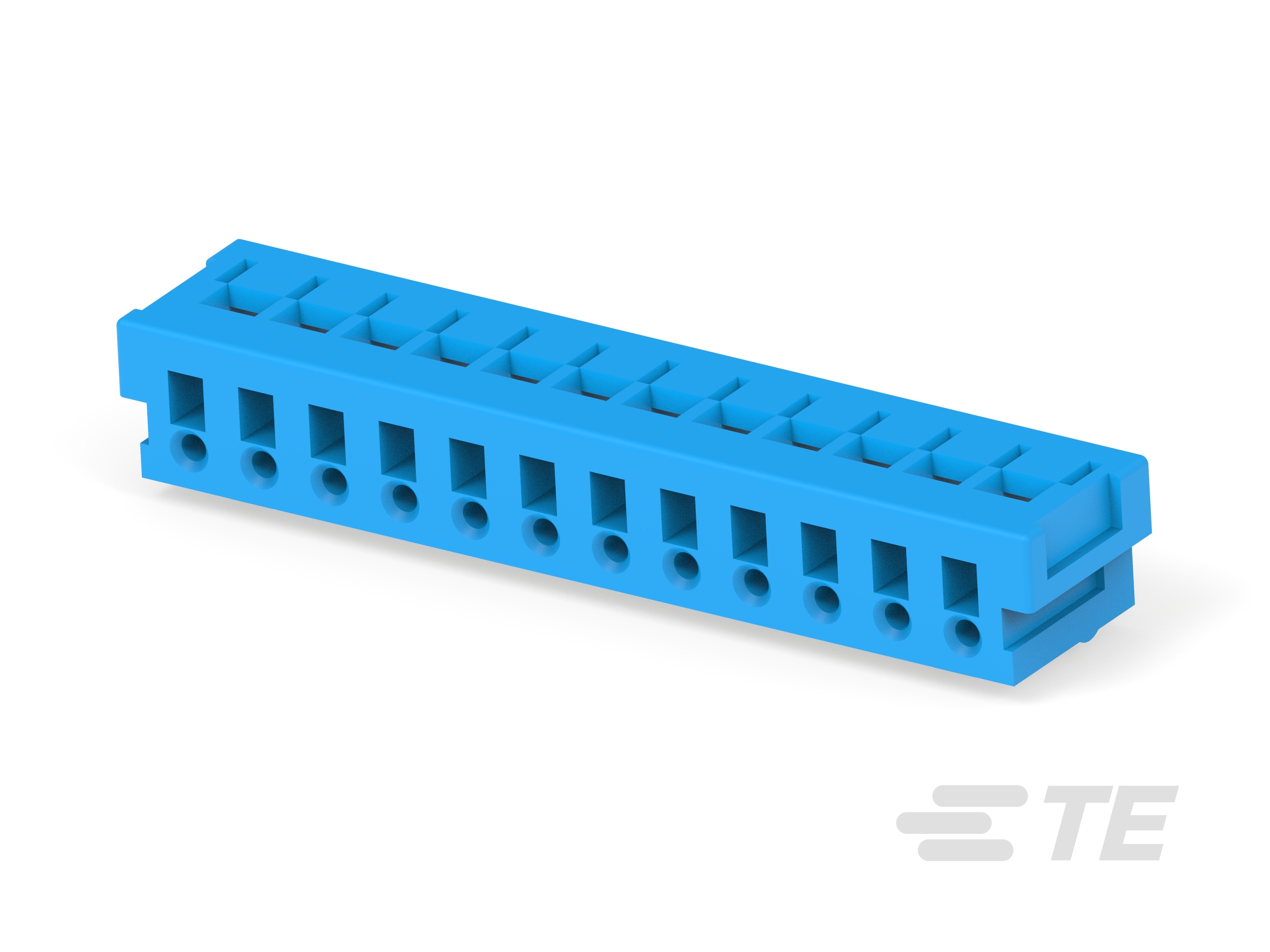

CT CRIMP REC HSG 12P BLUE
3-175778-2
ActiveTE Connectivity AMP Connectors
CT CRIMP REC HSG 12P BLUE
Description
General part information
3-175778-2
12 Position, Receptacle, Housing, Crimp, Wire-to-Board, UL 94V-0, 2 mm [.078 in] Centerline, 1 Row, 125 VAC, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-175778-2 |
|---|---|
| Color | Blue |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
