Description
General part information

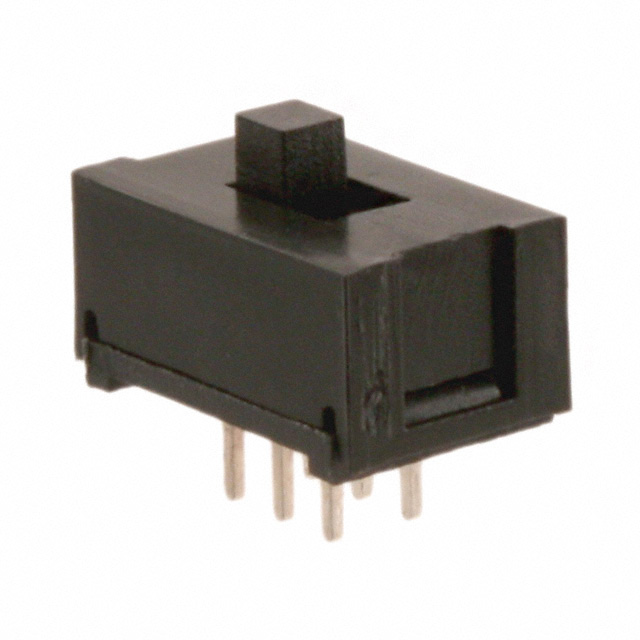

MMS2214
Slide Switch DPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MMS2214 |
|---|---|
| Actuator Length | 2 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Current Rating | 300 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On |
| Switch Travel | 2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
