VDRH14V385BSE
ActiveVishay Dale
VARISTOR 620V 6KA DISC 16.5MM
VDRH14V385BSE
ActiveVishay Dale
VARISTOR 620V 6KA DISC 16.5MM
Description
General part information
VDRH14V385BSE

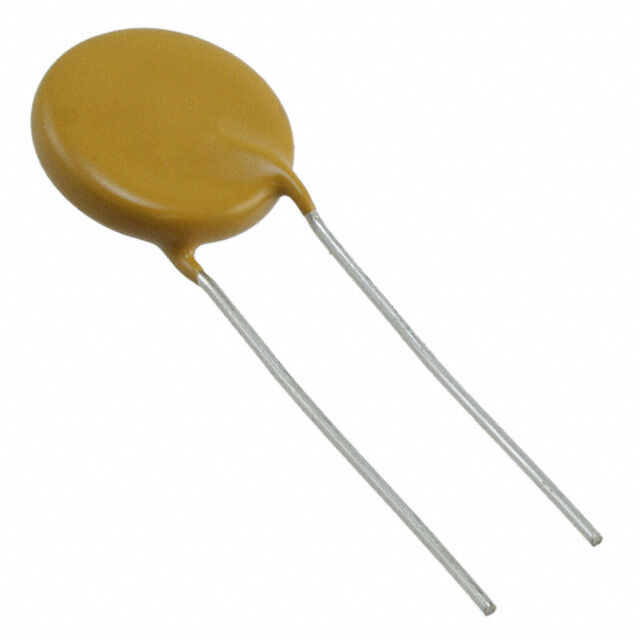

620 V 6 kA Varistor 1 Circuit Through Hole Disc 16.5mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VDRH14V385BSE |
|---|---|
| Capacitance | 280 pF |
| Current - Surge | 6000 A |
| Energy | 215 J |
| Maximum AC Volts | 385 V |
| Maximum DC Voltage | 505 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 16.5 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 682 V |
| Varistor Voltage (Min) | 558 V |
| Varistor Voltage (Typ) | 620 V |
