1423022
ActivePhoenix Contact
CONTACT INSERT, SIZE: B24, NUMBE
1423022
ActivePhoenix Contact
CONTACT INSERT, SIZE: B24, NUMBE
Description
General part information
1423022

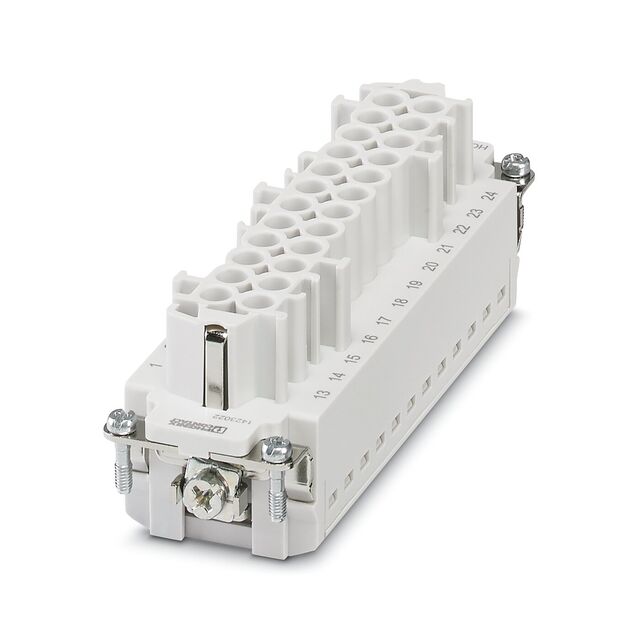

Female Insert 24+Ground Position Push In
Technical Specifications
Parameters and characteristics for this part
| Specification | 1423022 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 10 A |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | B24 |
| Termination Style | Push In |
| Voltage Rating | 500 V |
