EX0800010000G

Active

AMPHENOL ANYTEK

EX 5.0 - 8P NL66 , BRASS BRIGHT

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

EX 5.0 - 8P NL66 , BRASS BRIGHT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EX0800010000G	EX08 Series

	-	-
Color	Black	Black
Contact Material	Brass	Brass
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.132 in	0.132 - 0.134 in
Contact Tail Length	3.35 mm	3.35 - 3.4 mm
Current - UL	10 A	10 A
Header Orientation	Vertical	Vertical
Housing Material	Thermoplastic	Thermoplastic
Insulation Height	9.5 mm	9.5 mm
Insulation Height	0.374 in	0.374 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	-	8
Termination Style	Solder	Solder
Type	Male Pins, Partial Shroud, Header	Male Pins, Partial Shroud, Header
Voltage - UL	300 V	300 V

TERM BLOCK SOCKET MATCH EO

Part	Number of Levels	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Header Orientation	Insulation Height	Insulation Height	Type	Mounting Type	Contact Material	Contact Tail Length	Contact Tail Length	Number of Positions	Current - UL	Material Flammability Rating	Contact Mating Finish	Color	Pitch [x]	Pitch [x]	Voltage - UL	Termination Style	Positions Per Level
AMPHENOL ANYTEK EX080002A000G
AMPHENOL ANYTEK EX0800010000G	1	Thermoplastic	-40 °C	115 °C	Vertical	9.5 mm	0.374 in	Header, Male Pins, Partial Shroud	Through Hole	Brass	0.132 in	3.35 mm	8	10 A	UL94 V-0	Tin	Black	5 mm	0.197 in	300 V	Solder
AMPHENOL ANYTEK EX0800000000G	1	Thermoplastic	-40 °C	115 °C	Vertical	9.5 mm	0.374 in	Header, Male Pins, Partial Shroud	Through Hole	Brass	0.134 in	3.4 mm	8	10 A	UL94 V-0		Black	5 mm	0.197 in	300 V	Solder	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

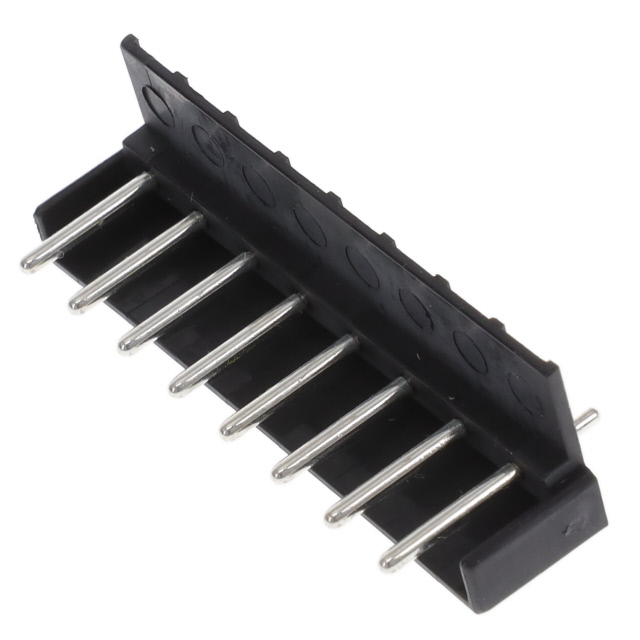

8 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
