2-821949-4

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PQFP 100POS TIN-LEAD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PQFP 100POS TIN-LEAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-821949-4	821949 Series

Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm	5.08 µm
Contact Finish Thickness - Mating	200 µin	200 µin
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Features	Closed Frame	Closed Frame
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	100	100 - 132
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Post	1.27 mm	1.27 mm
Pitch - Post	0.05 in	0.05 in
Termination	Solder	Solder
Termination Post Length	0.135 in	0.135 in
Termination Post Length	3.43 mm	3.43 mm
Type	QFP	QFP

CONN SOCKET PQFP 132POS TIN-LEAD

Part	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Pitch - Mating	Pitch - Mating	Termination Post Length	Termination Post Length	Mounting Type	Contact Finish - Mating	Number of Positions or Pins (Grid)	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Type	Pitch - Post	Pitch - Post	Contact Material - Post	Contact Material - Mating	Termination
TE Connectivity AMP Connectors 2-821949-5	UL94 V-0	200 µin	5.08 µm	Closed Frame	0.05 in	1.27 mm	0.135 in	3.43 mm	Through Hole	Tin-Lead	132	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Tin-Lead	QFP	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Solder
TE Connectivity AMP Connectors 2-821949-4	UL94 V-0	200 µin	5.08 µm	Closed Frame	0.05 in	1.27 mm	0.135 in	3.43 mm	Through Hole	Tin-Lead	100	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Tin-Lead	QFP	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Solder
TE Connectivity AMP Connectors 821949-4	UL94 V-0	200 µin	5.08 µm	Closed Frame	0.05 in	1.27 mm	0.135 in	3.43 mm	Through Hole	Tin-Lead	100	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Tin-Lead	QFP	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Solder
TE Connectivity AMP Connectors 821949-5	UL94 V-0	200 µin	5.08 µm	Closed Frame	0.05 in	1.27 mm	0.135 in	3.43 mm	Through Hole	Tin-Lead	132	Liquid Crystal Polymer (LCP)	5.08 µm	200 µin	Tin-Lead	QFP	1.27 mm	0.05 in	Phosphor Bronze	Phosphor Bronze	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

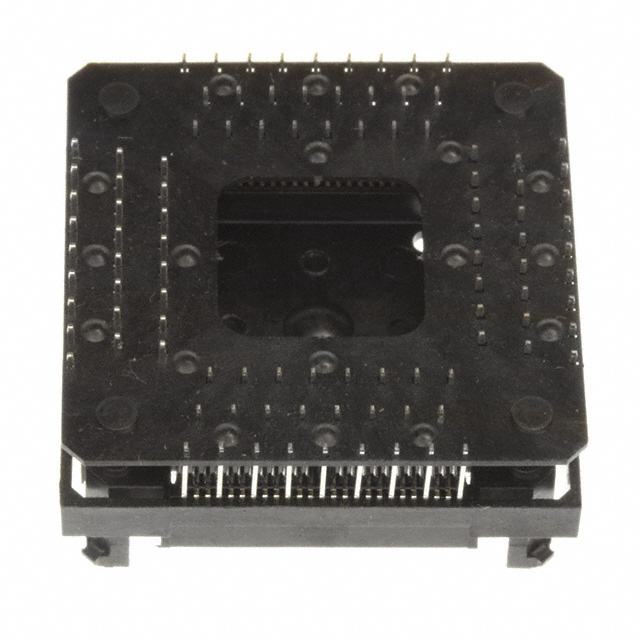

100 (4 x 25) Pos QFP Socket Tin-Lead Through Hole
