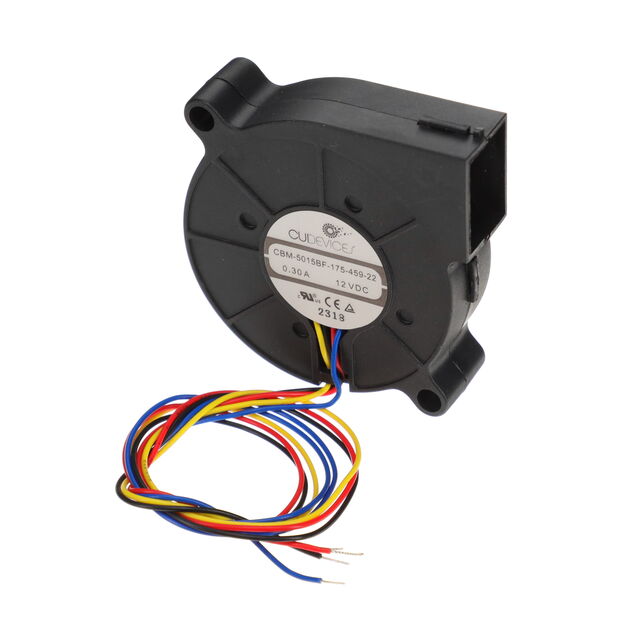

CBM-5015BF-175-459-22
ActiveSame Sky (Formerly CUI Devices)
DC BLOWER, 51.7 X 51.25 X 14.9 M
CBM-5015BF-175-459-22
ActiveSame Sky (Formerly CUI Devices)
DC BLOWER, 51.7 X 51.25 X 14.9 M
Description
General part information
CBM-5015BF-175-459-22
Fan Blower 12VDC Rectangular/Rounded - 51.6mm L x 51.2mm H Ball 4.8 CFM (0.134m³/min) 4 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CBM-5015BF-175-459-22 |
|---|---|
| Air Flow | 4.8 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Ball |
| Current Rating | 0.33 A |
| Fan Type | Blower |
| Features | Auto Restart, Speed Sensor (Tach), PWM Control |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 45.9 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 3.96 W |
| RPM | 7500 RPM |
| Size / Dimension Height | 51.2 mm |
| Size / Dimension Length | 51.6 mm |
| Size / Dimension Shape | Rectangular/Rounded |
| Static Pressure | 1.24 in H2O |
| Termination | 4 Wire Leads |
| Termination Leads Count | 4 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 15 mm |
