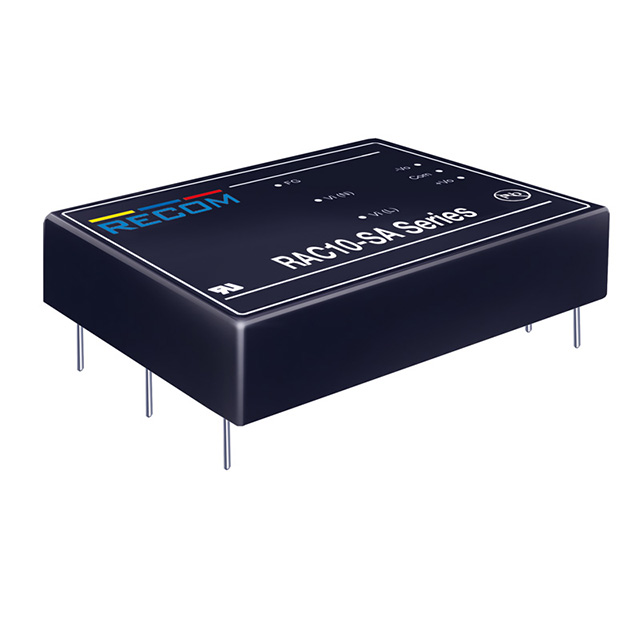

RAC10-15DA
ObsoleteRecom Power
AC/DC CONVERTER +/-15V 10W
RAC10-15DA
ObsoleteRecom Power
AC/DC CONVERTER +/-15V 10W
Description
General part information
RAC10-15DA
Enclosed AC DC Converters 2 Output 15V 300mA, 300mA 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC10-15DA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) | 300 mA |
| Efficiency | 72 % |
| Features | SCP |
| Line Regulation | 0.3 % |
| Load Regulation (Percent) | 0.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.87 in |
| Size / Dimension Length | 2.52 in |
| Size / Dimension Width | 1.77 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 15 V |
| Weight | 0.22 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
