UTSX61210P
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 10
UTSX61210P
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, FOR 10
Description
General part information
UTSX61210P

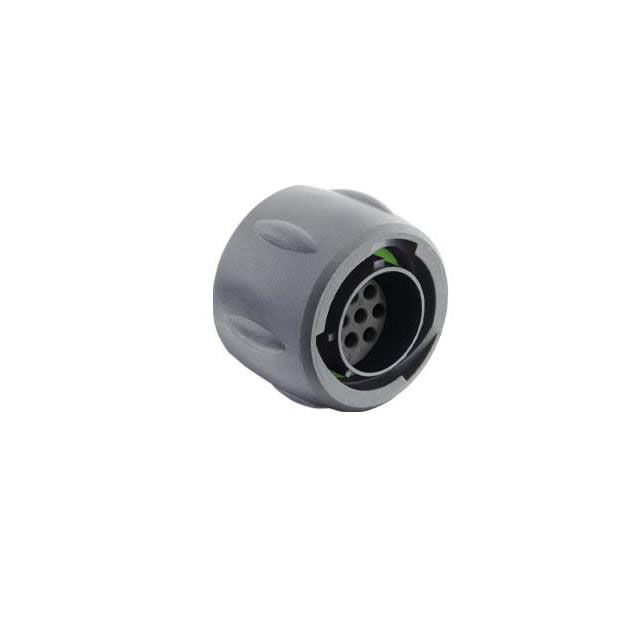

10 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX61210P |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Coupling Nut |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Unshielded |
| Type | For Male Pins |
