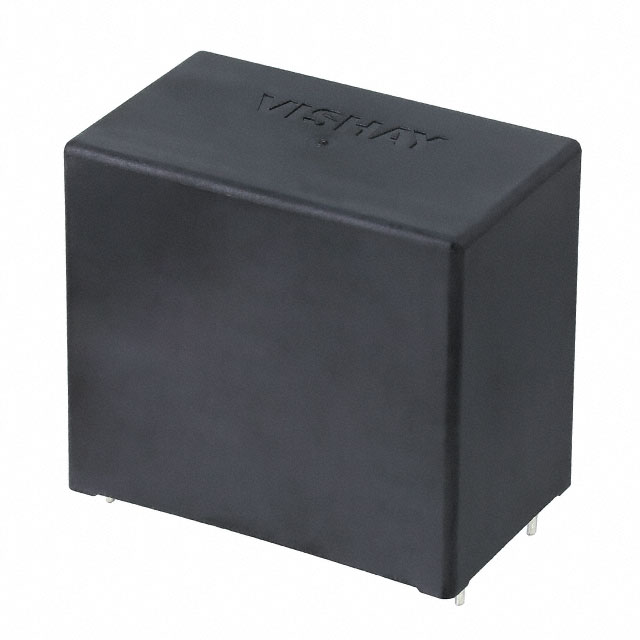

MKP1847H62035JY5
ActiveVishay Dale
MKP 20ΜF ±5% 350VAC PITCH 52,5 PINS 4
MKP1847H62035JY5
ActiveVishay Dale
MKP 20ΜF ±5% 350VAC PITCH 52,5 PINS 4
Description
General part information
MKP1847H62035JY5
20 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MKP1847H62035JY5 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 20 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 3.5 mOhm |
| Height - Seated (Max) | 1.988 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.378 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 700 VDC |
