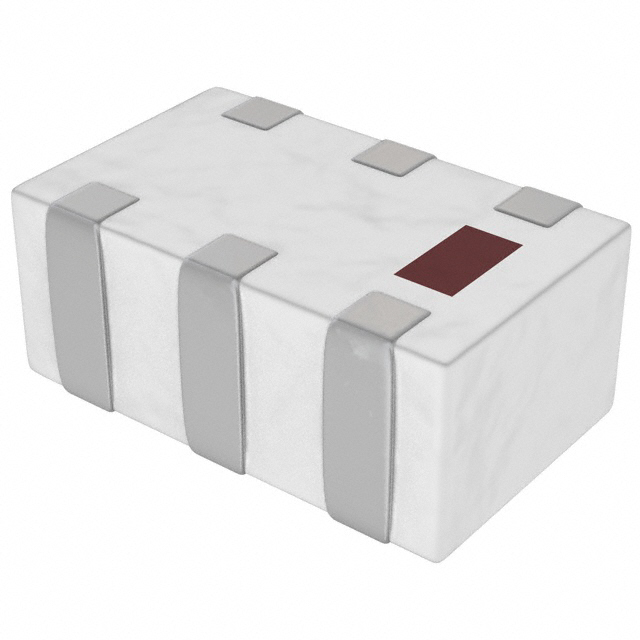

1600BL15B0100001E
ActiveJohanson Technology Inc.
BALUN 1.5GHZ-1.7GHZ 50/100 0805
1600BL15B0100001E
ActiveJohanson Technology Inc.
BALUN 1.5GHZ-1.7GHZ 50/100 0805
Description
General part information
1600BL15B0100001E
RF Balun 1.5GHz ~ 1.7GHz 50 / 100Ohm 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1600BL15B0100001E |
|---|---|
| Frequency Range (Max) | 1.7 GHz |
| Frequency Range (Min) | 1.5 GHz |
| Impedance - Balanced | 100 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 10 ° |
| Return Loss (Min) | 9.5 dB |
