MBB02070C3051DC100
ActiveVishay Dale
RES 3.05K OHM 0.6W 0.5% AXIAL
MBB02070C3051DC100
ActiveVishay Dale
RES 3.05K OHM 0.6W 0.5% AXIAL
Description
General part information
MBB02070C3051DC100

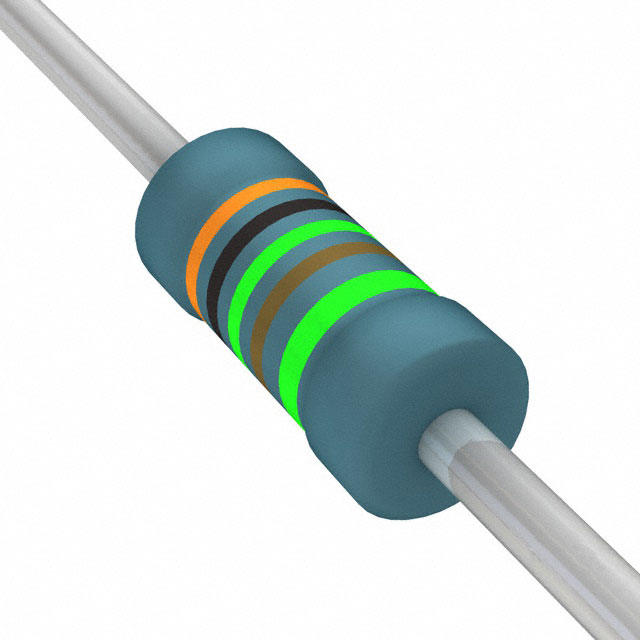

3.05 kOhms ±0.5% 0.6W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBB02070C3051DC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 600 mW |
| Resistance | 3.05 kOhms |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
