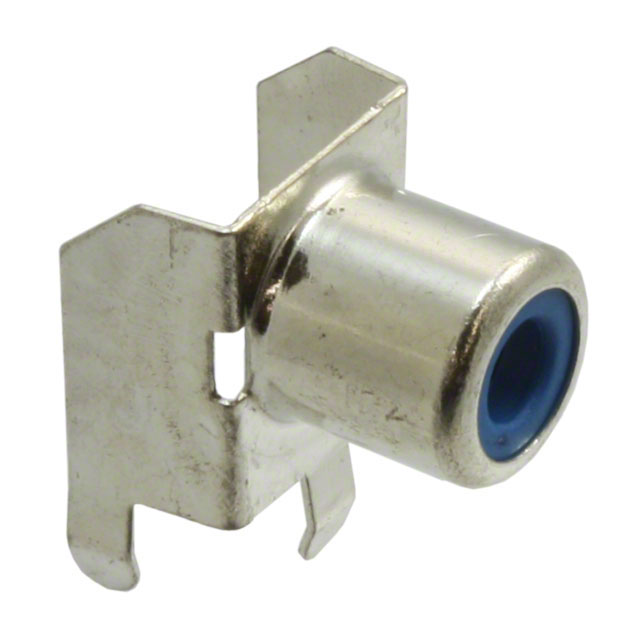

RCJ-015
ActiveSame Sky (Formerly CUI Devices)
CONN RCA JACK RCP 2 POS SOLDER RA THRU-HOLE 2 TERMINAL 1 PORT
RCJ-015
ActiveSame Sky (Formerly CUI Devices)
CONN RCA JACK RCP 2 POS SOLDER RA THRU-HOLE 2 TERMINAL 1 PORT
Description
General part information
RCJ-015
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | RCJ-015 |
|---|---|
| Actual Diameter (ID) | 0.142 in |
| Actual Diameter (OD) | 0.327 in |
| Body Color | Silver |
| Body Material | Steel |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Features | Board Lock |
| Gender | Female |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Insulation Color | Blue |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
