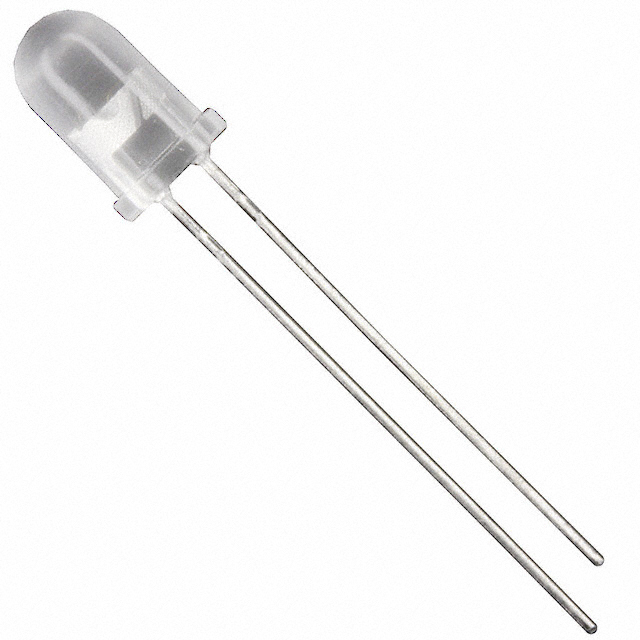

C503B-ACN-CY0Z0342

Active

CreeLED, Inc.

ROUND 503-B SERIES LED -AMBER COLOR,5860-12000MCD,HUE A3 AND A4,AMMO PACK

Find alt

Alpha

C503B-ACN-CY0Z0342

Active

CreeLED, Inc.

ROUND 503-B SERIES LED -AMBER COLOR,5860-12000MCD,HUE A3 AND A4,AMMO PACK

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

C503B Series

Round LEDs offer superior light output for excellent readability in sunlight and dependable performance. They provide extremely stable light output over long periods of time.Size (mm): 5 • Color and Typical Dominant Wavelength: Red (624nm) Amber(591nm) Lead - Free • RoHS Compliant

Technical Specifications

Parameters and characteristics for this part

Specification	C503B-ACN-CY0Z0342

Color	Amber
Configuration	Standard
Current - Test	20 mA
Height (Max)	10.1 mm
Lens Color	Colorless
Lens Diameter	5 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	8930 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Round
Supplier Device Package Shape	Round
Supplier Device Package Size	5 mm
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	591 nm

C503B Series

...

Part	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Package / Case	Lens Color	Millicandela Rating	Lens Diameter	Lens Transparency	Current - Test	Color	Height (Max)	Configuration	Lens Style	Viewing Angle	Mounting Type	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant (Color Temperature)	Lens Size	Lens Size (Code)	Supplier Device Package
CreeLED, Inc. C503B-RCS-CXAYCAA1-030	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Red	12.9 mm	Standard	Domed Top Round	30 °	Through Hole	624 nm	2.1 V
CreeLED, Inc. C503B-GAS-CC0D0781	5 mm	Round	5mm Round	Radial	Colorless	34800 mcd	5 mm	Clear	20 mA	Green	13.3 mm	Standard	Domed Top Round	15 °	Through Hole	525 nm	3.2 V
CreeLED, Inc. C503B-ACS-CX0Z0342	5 mm	Round	5mm Round	Radial	Colorless	8090 mcd	5 mm	Clear	20 mA	Amber	12.7 mm	Standard	Domed Top Round	30 °	Through Hole	591 nm	2.1 V
CreeLED, Inc. C503B-BCN-CX0Y0451	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Blue	8.6 mm	Standard	Domed Top Round	30 °	Through Hole	470 nm	3.2 V
CreeLED, Inc. C503B-WAN-CCADA152	5 mm	Round	5mm Round	Radial	Colorless	31500 mcd	5 mm	Clear	20 mA	Cool White	8.8 mm	Standard	Domed Top Round	15 °	Through Hole		3.2 V	9000 K
CreeLED, Inc. C503B-RCS-CYBZAAA1-030	5 mm	Round	5mm Round	Radial	Colorless	8300 mcd	5 mm	Clear	20 mA	Red	12.9 mm	Standard	Domed Top Round	30 °	Through Hole	624 nm	2.1 V
CreeLED, Inc. C503B-BCS-CX0Y0451	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Blue	12.7 mm	Standard	Domed Top Round	30 °	Through Hole	470 nm	3.2 V
CreeLED, Inc. C503B-AAN-CY0Z0341	5 mm	Round	5mm Round	Radial	Colorless	8930 mcd	5 mm	Clear	20 mA	Amber	11.3 mm	Standard	Domed Top Round	15 °	Through Hole	591 nm	2.1 V
CreeLED, Inc. C503B-WAN-CCADB342				Radial	Colorless	34800 mcd		Clear	20 mA	Cool White	10.3 mm	Standard	Domed Top Round	15 °	Through Hole		3.2 V	9000 K	5 mm	T-1 3/4	5 mm
CreeLED, Inc. C503B-ABS-CW0X0341	5 mm	Round	5mm Round	Radial	Colorless	4430 mcd	5 mm	Clear	20 mA	Amber	13.3 mm	Standard	Domed Top Round	23 °	Through Hole	591 nm	2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
