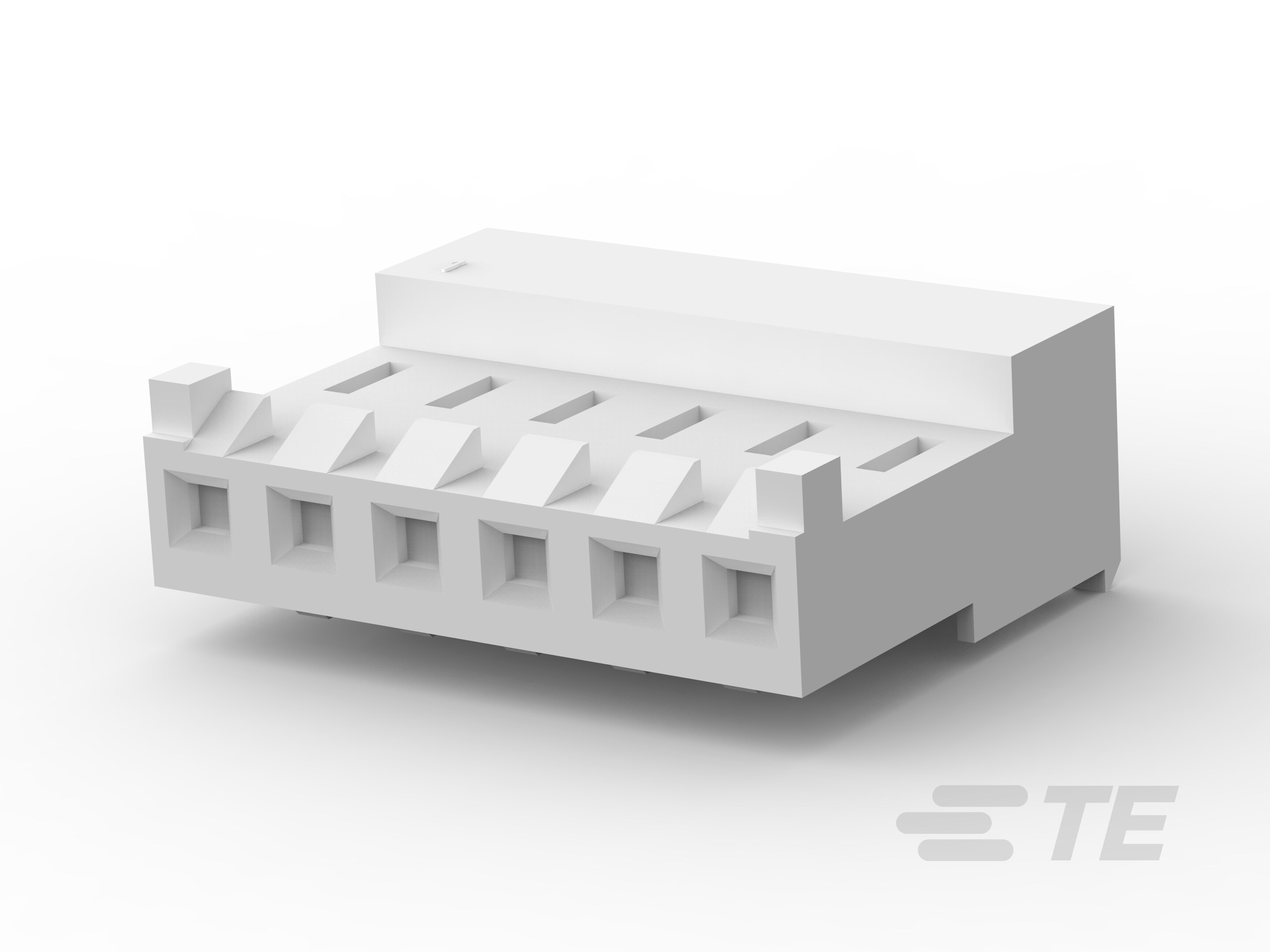

3-643820-6
ActiveTE Connectivity AMP Connectors
CONN IDC CONNECTOR F 6POWER POS 3.96MM IDT RA CABLE MOUNT BAG/BOX
3-643820-6
ActiveTE Connectivity AMP Connectors
CONN IDC CONNECTOR F 6POWER POS 3.96MM IDT RA CABLE MOUNT BAG/BOX
Description
General part information
3-643820-6
6 Position, Receptacle, Connector Assembly, Insulation Displacement (IDC), Wire-to-Board, Tin (Sn), UL 94V-2, 3.96 mm [.156 in] Centerline, MTA 156
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-643820-6 |
|---|---|
| Cable Termination | IDC |
| Color | White |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Finish Thickness | 80 µin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | Closed End, Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch | 0.156 in |
| Wire Gauge | 24 AWG |
| Wire Type | Ribbon Cable, Discrete |
