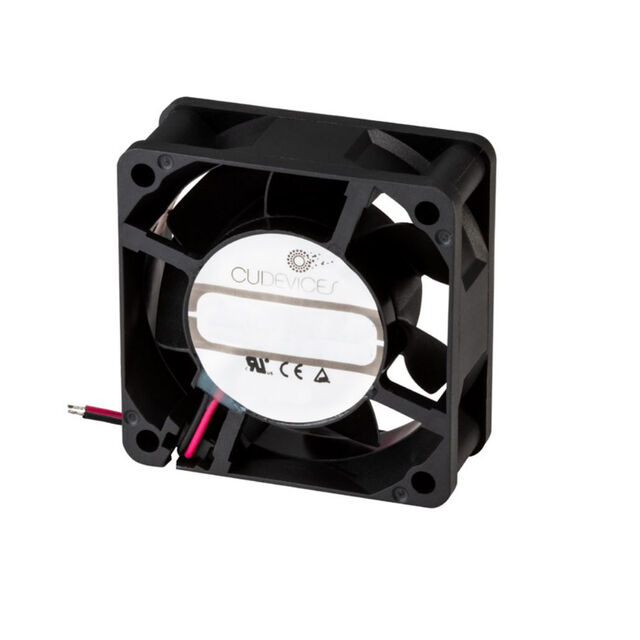

CFM-6025BG68-270-434
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 60 MM SQUARE, 25 M
CFM-6025BG68-270-434
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 60 MM SQUARE, 25 M
Description
General part information
CFM-6025BG68-270-434
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 29.8 CFM (0.834m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-6025BG68-270-434 |
|---|---|
| Air Flow | 29.8 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Ball |
| Current Rating | 0.25 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 43.4 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 6 W |
| RPM | 7000 RPM |
| Size / Dimension Height | 60 mm |
| Size / Dimension Length | 60 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.58 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 26.4 VDC |
| Voltage Range (Min) | 21.8 VDC |
| Width | 25 mm |
