F-3116X

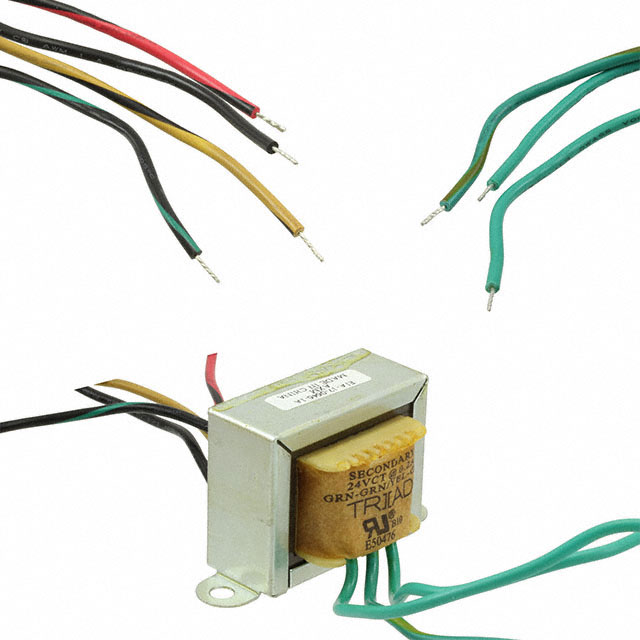

CHASSIS MOUNT TRANSFORMER, POTTED HIGH VOLTAGE, 115V, 230V, 24V, 4.8 VA, 50HZ / 60HZ
Technical Specifications
Parameters and characteristics for this part
| Specification | F-3116X |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 200 mA |
| Height - Seated (Max) | 34.93 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 4.8 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 60.32 mm |
| Size / Dimension Width | 38.1 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 0.45 lb |
