CPI0603J1R0R-10
ActiveLaird Technologies EMI
MULTILAYER FERRITE CHIP POWER IN
CPI0603J1R0R-10
ActiveLaird Technologies EMI
MULTILAYER FERRITE CHIP POWER IN
Description
General part information
CPI0603J1R0R-10

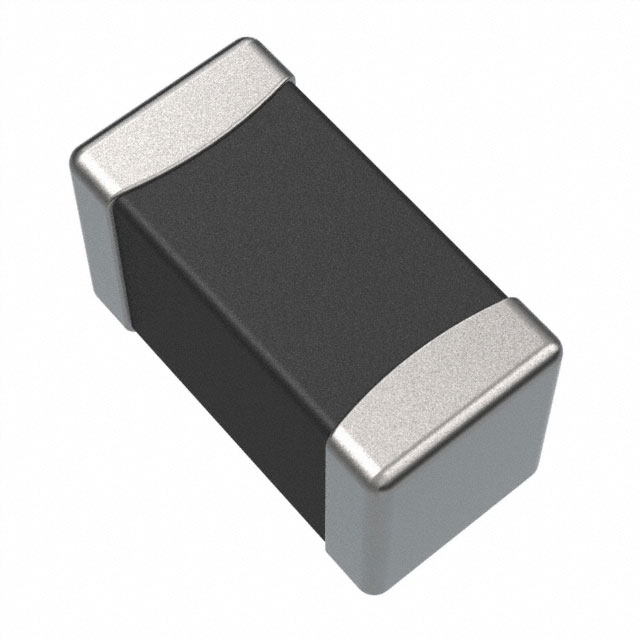

1 µH Unshielded Multilayer Inductor 1 A 250mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CPI0603J1R0R-10 |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Frequency - Self Resonant | 60 MHz |
| Height - Seated (Max) | 0.037 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 20 % |
| Type | Multilayer |
