ML2430-HS1
ObsoleteFDK America, Inc.
BATTERY LITHIUM 3V 100MAH COIN
ML2430-HS1
ObsoleteFDK America, Inc.
BATTERY LITHIUM 3V 100MAH COIN
Description
General part information
ML2430-HS1

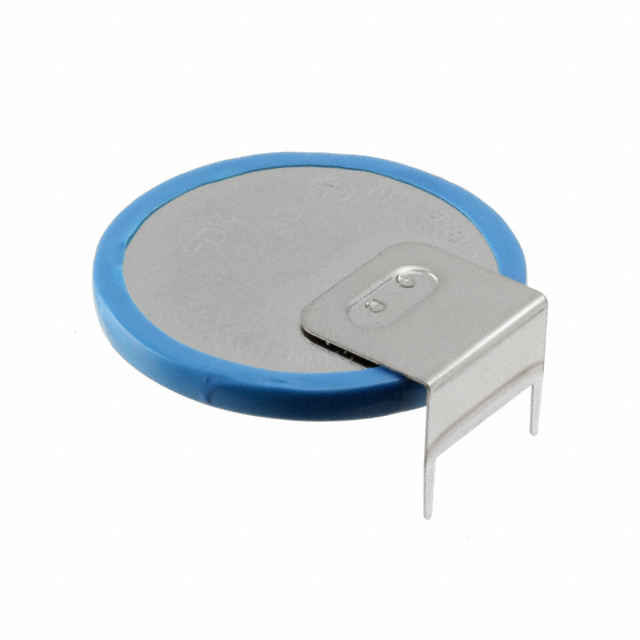

Coin, 24.5mm 3 V Lithium Battery Rechargeable (Secondary) 100mAh
Technical Specifications
Parameters and characteristics for this part
| Specification | ML2430-HS1 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 24.5 mm |
| Battery Chemistry | Lithium |
| Capacity (Charge) | 100 mAh |
| Discharge Rate (Current) | 500 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 0.96 in |
| Size / Dimension Height | 0.12 in |
| Standard Charge Current | 500 µA |
| Termination Style | PC Pin (Horizontal Mount) |
| Voltage - Rated | 3 VDC |
| Weight | 4.1 g |
