2-323986-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 20-24AWG #6 CRIMP
2-323986-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 20-24AWG #6 CRIMP
Description
General part information
2-323986-1

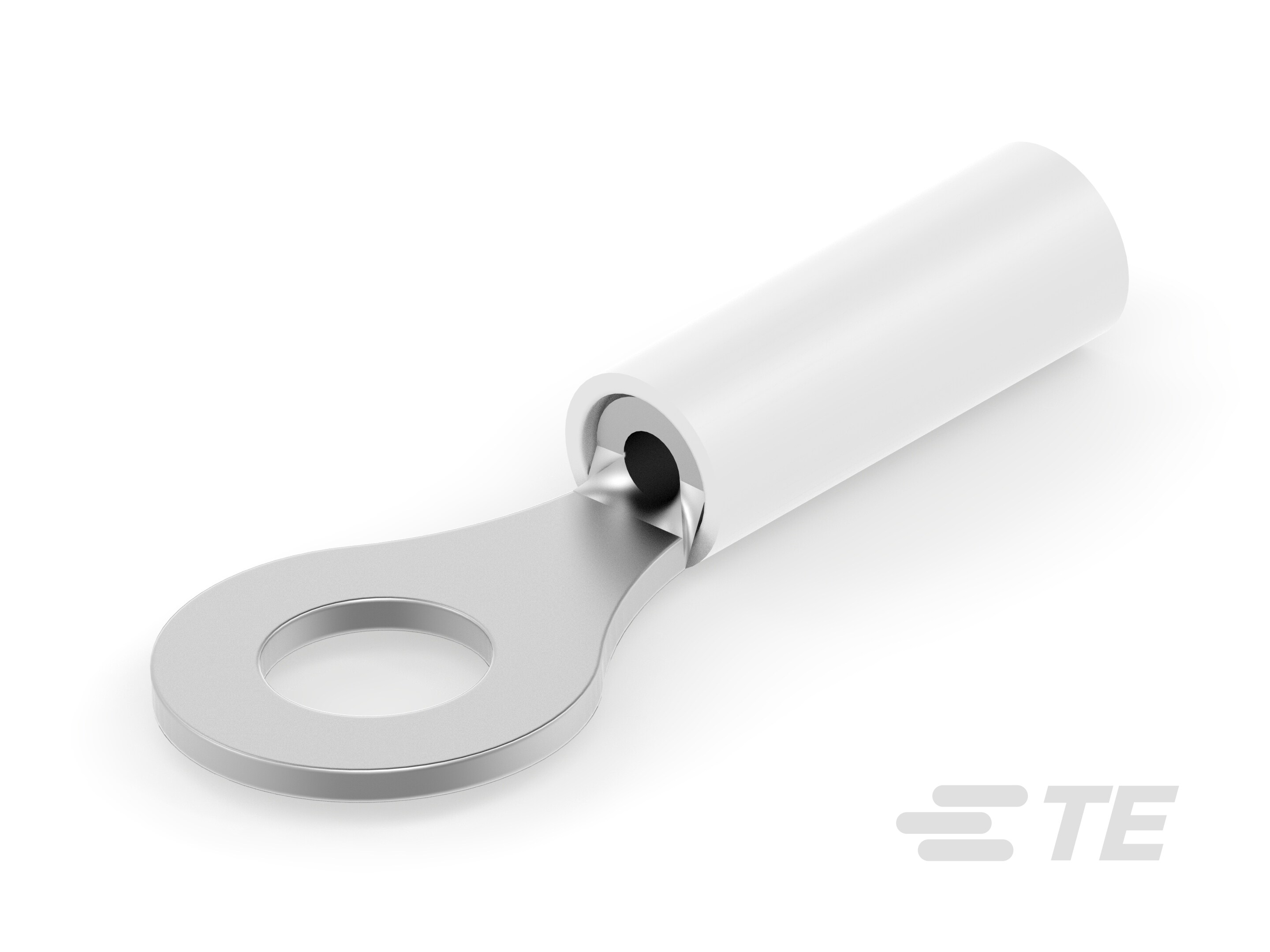

Closed Ring Tongue Terminal, 24 – 20 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-323986-1 |
|---|---|
| Color | Natural |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.744 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.023 in |
| Width - Outer Edges | 0.281 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
