FODSCMIL-03
ActivePasternack
SC-SC OM1 ZIP TPUR BLK MIL 3M
FODSCMIL-03
ActivePasternack
SC-SC OM1 ZIP TPUR BLK MIL 3M
Description
General part information
FODSCMIL-03

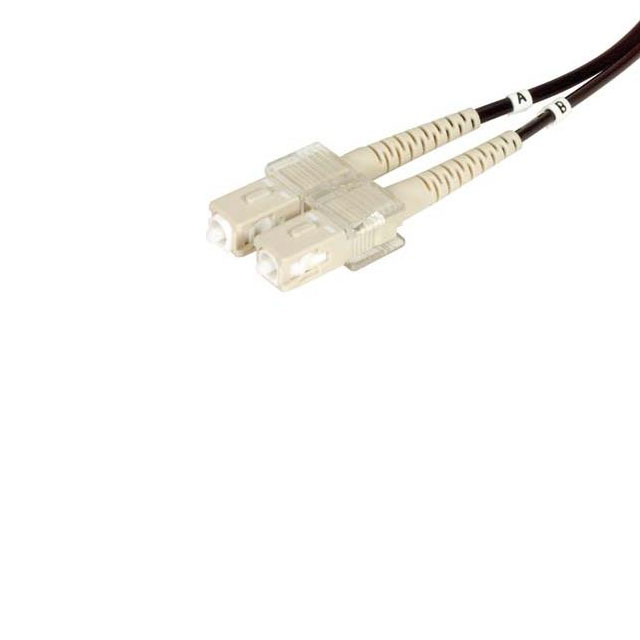

Cable Fiber Optic SC/PC Duplex To SC/PC Duplex 62.5/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FODSCMIL-03 |
|---|---|
| 1st Connector | SC/PC Duplex |
| 2nd Connector | SC/PC Duplex |
| Bend Radius | 50 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Insertion Loss | 0.5 dB |
| Jacket (Insulation) Material | Polyurethane (PUR) |
| Length - Overall | 9.8 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Type | Multimode, OM1, Duplex |
