STD16
ActiveEaton - Electronics Division
FUSE, HRC, BOLTED TAG, 16A, 240VAC ROHS COMPLIANT: YES
STD16
ActiveEaton - Electronics Division
FUSE, HRC, BOLTED TAG, 16A, 240VAC ROHS COMPLIANT: YES
Description
General part information
STD16

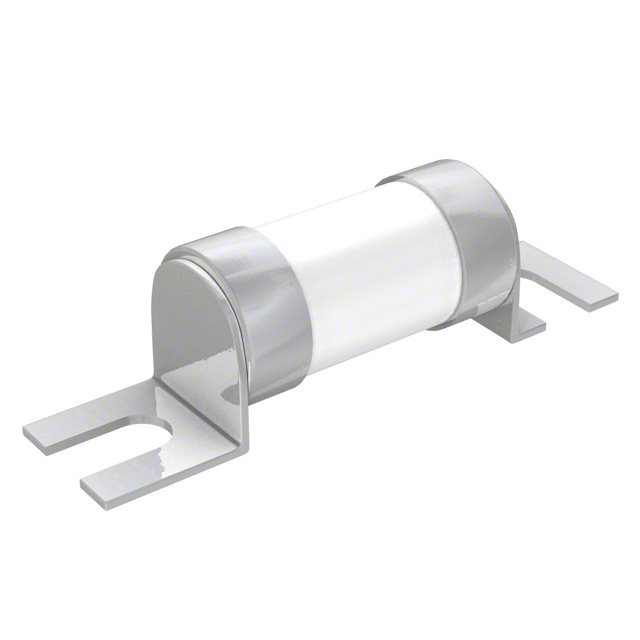

16A 240 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | STD16 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 33 kA |
| Current Rating | 16 A |
| Fuse Type | Cartridge |
| Melting I²t | 160 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.476 in |
| Size / Dimension Length | 0.945 in |
| Voltage Rating - AC | 240 V |
