DCCDB09F

Active

Switchcraft Inc.

CONN D-SUB RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN D-SUB RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	DCCDB09F

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Cable Side, Male Jackscrew
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

CONN D-SUB RCPT 9POS SLDR CUP

Part	Connector Type	Contact Finish	Flange Feature	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Mounting Type	Current Rating (Amps)	Number of Rows	Connector Style	Dielectric Material	Ingress Protection
Switchcraft Inc. DCCDB09F	Receptacle, Female Sockets	Gold	Cable Side, Male Jackscrew	9	UL94 V-0	85 °C	-55 °C	Black	DE, E	1	Copper Alloy	22 AWG	26 AWG	Signal	Free Hanging (In-Line)	5 A	2	D-Sub	Thermoplastic	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

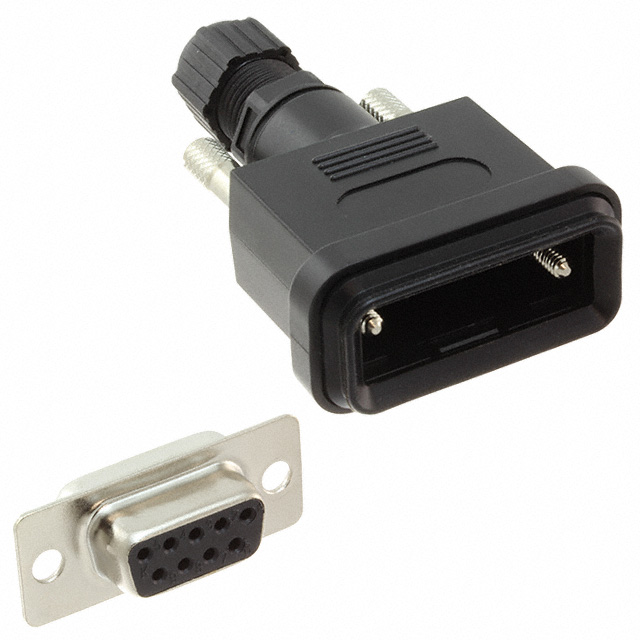

9 Position D-Sub Receptacle, Female Sockets Connector
