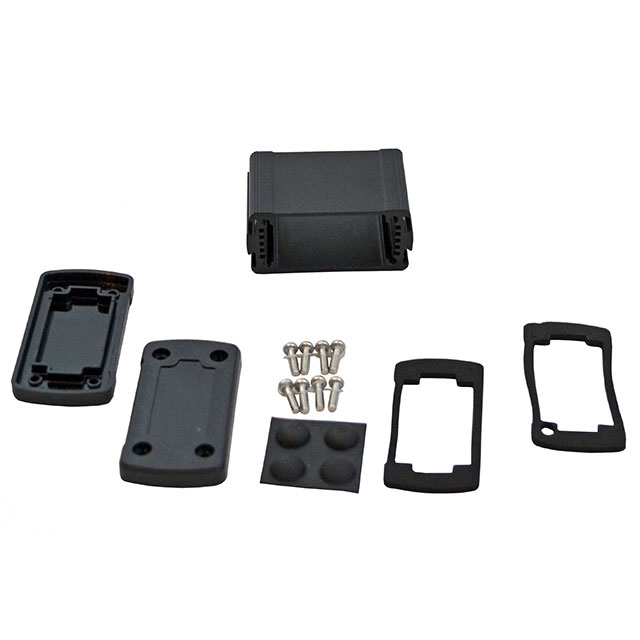

EXN-23350-BKP

Active

BUD INDUSTRIES

BOX ALUM BLACK 2.71"L X 1.93"W

Search across all available documentation for this part.

Active

BUD INDUSTRIES

BOX ALUM BLACK 2.71"L X 1.93"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXN-23350-BKP	EXN-23350 Series

Area (L x W)	33.6 cm²	33.6 cm²
Area (L x W)	5.21 in²	5.21 in²
Color	Black	Black, Gold
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	1.386 in	1.386 in
Height [z]	35.2 mm	35.2 mm
Material	Metal, Polycarbonate Panels, Aluminum with Plastic	Metal, Aluminum, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	2.705 in	2.705 in
Size / Dimension [x]	68.7 mm	68.7 mm
Size / Dimension [y]	49 mm	49 mm
Size / Dimension [y]	1.929 in	1.929 in
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	0.15 lbs	0.15 - 0.25 lbs
Weight	68.04 g	68.04 - 113.4 g

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 35.2 MM, 49 MM, 68.7 MM, IP66

Part	Ratings	Height [z]	Height [z]	Design	Color	Features	Container Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Area (L x W)	Area (L x W)	Material	Material Flammability Rating
BUD INDUSTRIES EXN-23350-GD	IP66	1.386 in	35.2 mm	End Panel(s)	Black, Gold	Card Guides, Sealing Gaskets	Box	113.4 g	0.25 lbs	49 mm	2.705 in	68.7 mm	1.929 in	0.091 in	2.3 mm	33.6 cm²	5.21 in²	Aluminum, Metal
BUD INDUSTRIES EXN-23350-BKP	IP66	1.386 in	35.2 mm	End Panel(s)	Black	Card Guides, Sealing Gaskets	Box	68.04 g	0.15 lbs	49 mm	2.705 in	68.7 mm	1.929 in	0.091 in	2.3 mm	33.6 cm²	5.21 in²	Aluminum with Plastic, Metal, Polycarbonate Panels	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Black End Panel(s) 2.705" L x 1.929" W (68.70mm x 49.00mm) X 1.386" (35.20mm)
