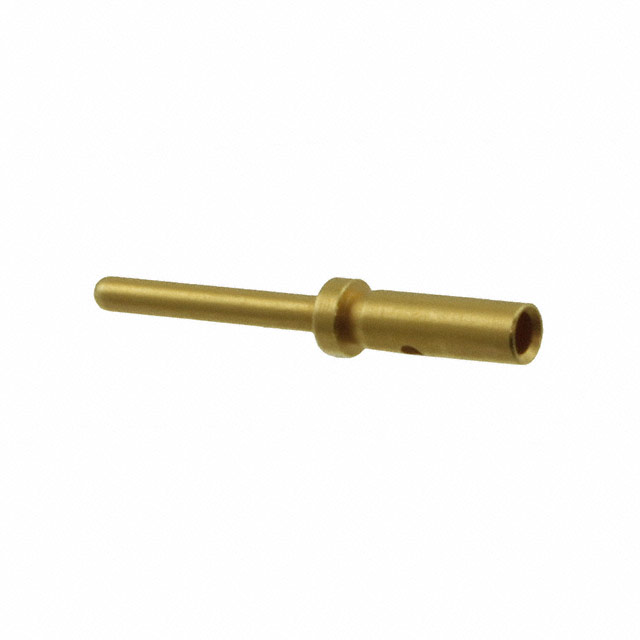

030-1952-004 - 030-1952-004

030-1952-004

Active

ITT Cannon, LLC

CONN D-SUB PIN CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15000	$ 0.63

Description

General part information

030-1 Series

D-Sub Contact Male Pin Crimp Machined

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	030-1952-004	030-1 Series

	-	-
Contact Finish	-	Gold, Silver
Contact Material	-	Copper Alloy
Contact Size	-	16
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Female Socket, Pin, Male Pin
Pin or Socket	-	Pin
Qualification	-	MIL-DTL-5015
Type	Signal	Signal
Wire Gauge	-	20 - 26 AWG
Wire Gauge	-	24 - 30 AWG
Wire Gauge or Range - AWG	-	16 AWG
Wire Gauge or Range - AWG	-	20 AWG

030-1 Series

RP CNT P DPDMA/DPXMA-1616 ALU

Part	Contact Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Type	Contact Termination	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Size	Qualification	Pin or Socket
ITT Cannon, LLC 030-1897-000
ITT Cannon, LLC 030-1953-002	Female Socket	Gold	26 AWG	30 AWG	Copper Alloy	Signal	Crimp
ITT Cannon, LLC 030-1082-000	Pin	Silver			Copper Alloy		Crimp	16 AWG	20 AWG	16	MIL-DTL-5015
ITT Cannon, LLC 030-1908-001							Crimp					Pin
ITT Cannon, LLC 030-1133-000	Pin	Silver			Copper Alloy		Crimp	16 AWG	20 AWG	16	MIL-DTL-5015
ITT Cannon, LLC 030-1952-004	Male Pin					Signal	Crimp
ITT Cannon, LLC 030-1953-000	Female Socket	Gold	20 AWG	24 AWG	Copper Alloy	Signal	Crimp
ITT Cannon, LLC 030-1952-002	Male Pin	Gold	26 AWG	30 AWG	Copper Alloy	Signal	Crimp
ITT Cannon, LLC 030-1212-000
