DC0011/07-TG-A486G-0.3-2A

Active

t-Global Technology

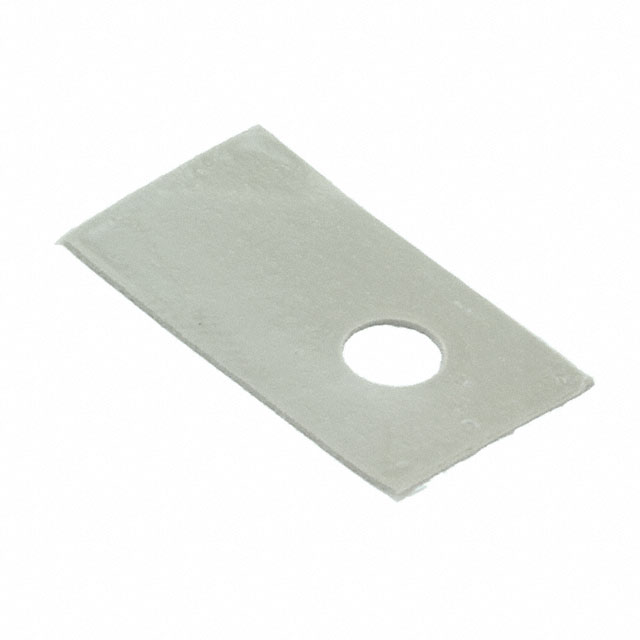

THERM PAD 19.05MMX10.41MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 19.05MMX10.41MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 19.05mm x 10.41mm Rectangular Adhesive - Both Sides

Technical documentation and resources

Part	Thermal Conductivity	Shelf Life	Thickness	Thickness	Type	Shelf Life Start	Color	Usage	Outline [x]	Outline [y]	Material	Shape	Thickness [x]	Thickness [x]	Backing, Carrier	Adhesive	Thickness [custom]	Thickness [custom]
t-Global Technology DC0011/07-TG-A482K-0.1-0	2.3 W/m-K	24 Months	0.1 mm	0.0039 in	Die-Cut Pad, Sheet	Date of Purchase	Red	TO-220	19.05 mm	10.41 mm	Silicone	Rectangular
t-Global Technology DC0011/07-TI900-0.12-0	1.8 W/m-K	24 Months			Die-Cut Pad, Sheet		White	TO-220	19.05 mm	10.41 mm	Silicone	Rectangular	0.005 in	0.127 mm	Viscose
t-Global Technology DC0011/07-TG-A486G-0.3-2A	6 W/m-K	12 Months			Die-Cut Pad, Sheet	Date of Purchase	Gray	TO-220	19.05 mm	10.41 mm		Rectangular				Adhesive - Both Sides	0.305 mm	0.012 "
t-Global Technology DC0011/07-TG-A373F-0.25-2A	1.4 W/m-K	12 Months			Die-Cut Pad, Sheet		Yellow	TO-220	19.05 mm	10.41 mm		Rectangular				Adhesive - Both Sides	0.254 mm	0.01 in
t-Global Technology DC0011/07-TI900-0.12-2A	1.8 W/m-K	24 Months			Die-Cut Pad, Sheet		White	TO-220	19.05 mm	10.41 mm	Silicone	Rectangular	0.005 in	0.127 mm	Viscose	Adhesive - Both Sides
t-Global Technology DC0011/07-TG-AH482-2.0-0	2.2 W/m-K	24 Months	2 mm	0.079 in	Die-Cut Pad, Sheet		Red	TO-220	19.05 mm	10.41 mm		Rectangular
