Description
General part information

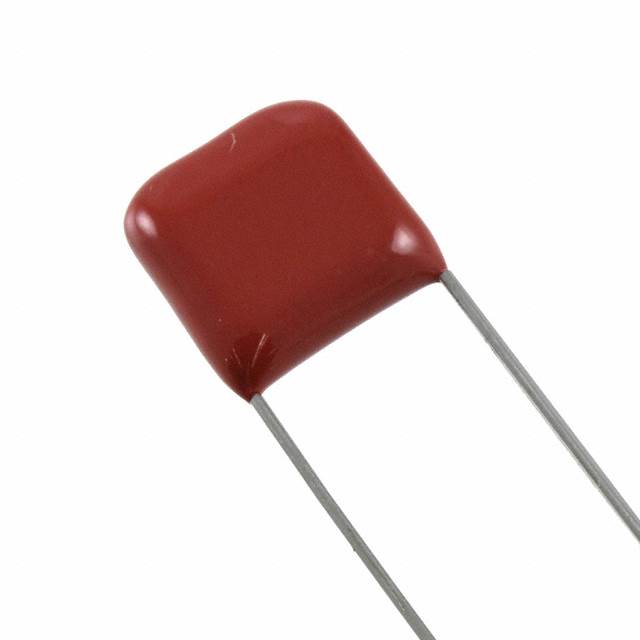

QXL2E473KTPT
0.047 µF Film Capacitor 250V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXL2E473KTPT |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 47 nF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.598 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.531 in |
| Size / Dimension Width | 0.252 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
