STDCIY1-40M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 40MHZ 8PF SMD
STDCIY1-40M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 40MHZ 8PF SMD
Description
General part information
STDCIY1-40M

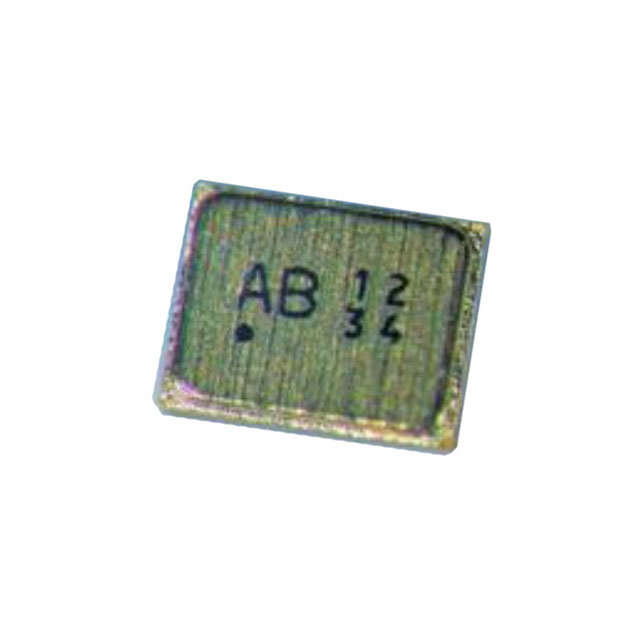

40 MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | STDCIY1-40M |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 40 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.012 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.033 in |
| Type | MHz Crystal |
