FOC-LCSMD20FB
ActivePasternack
LC 9/125 DUPLEX FLEX BOOT W/DUST
FOC-LCSMD20FB
ActivePasternack
LC 9/125 DUPLEX FLEX BOOT W/DUST
Description
General part information
FOC-LCSMD20FB

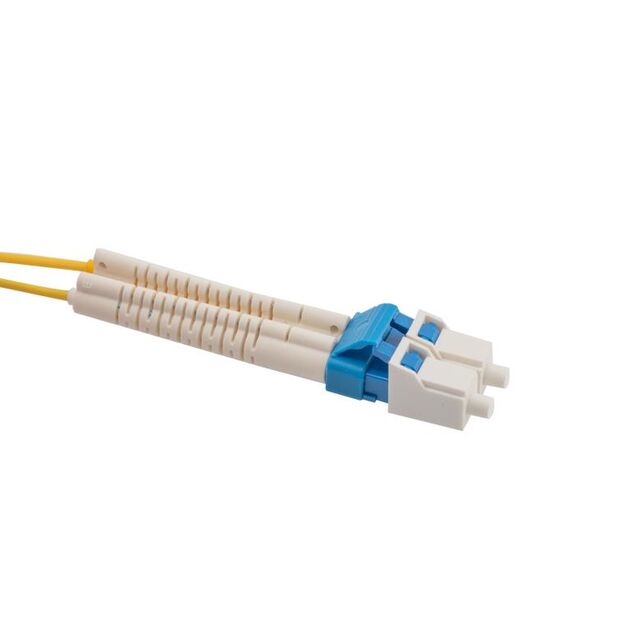

Fiber Optic Plug Connector LC Duplex 125µm Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | FOC-LCSMD20FB |
|---|---|
| Body Material | PC, Polycarbonate |
| Boot Color | Beige |
| Cable Diameter | 2 mm |
| Connector Style | LC |
| Connector Type | Plug |
| Fastening Type | Latch Lock |
| Features | Dust Cap, Strain Relief |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Housing Color | Blue |
| Mode | Singlemode |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Simplex/Duplex | Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
