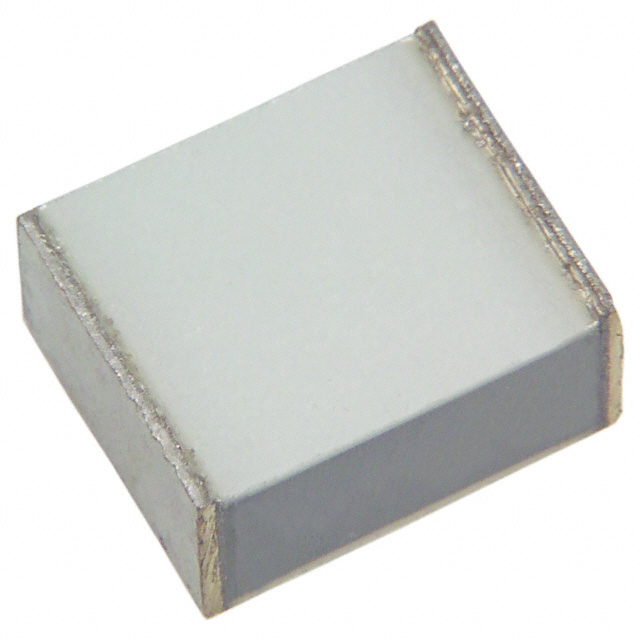

Specification	ECW-U2474KCV

Applications	General Purpose
Capacitance	0.47 µF
Dielectric Material	Polyester, Metallized - Stacked, Polyethylene Naphthalate (PEN)
Height - Seated (Max)	0.217 in
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	3931 (9880 Metric)
Size / Dimension Length	0.386 in
Size / Dimension Width	0.315 in
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	125 V
Voltage Rating - DC	250 VDC

ECW-U Series

...

Part	Height - Seated (Max)	Package / Case	Size / Dimension Width	Size / Dimension Length	Termination	Applications	Dielectric Material	Mounting Type	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - DC	Tolerance	Voltage Rating - AC
Panasonic Electronic Components ECW-U2183JC9	0.087 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.018 µF	125 °C	-55 °C	250 VDC	5 %
Panasonic Electronic Components ECW-U2472JC9	0.067 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	4700 pF	125 °C	-55 °C	250 VDC	5 %	125 V
Panasonic Electronic Components ECW-U1562JX5	0.067 in	1210 (3225 Metric)	0.098 in	0.126 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	5600 pF	105 °C	-55 °C	100 V	5 %	40 V
Panasonic Electronic Components ECW-U2393V16	0.091 in	2416 (6041 Metric)	0.161 in	0.236 in	Solder Pads	DV/DT High Frequency High Pulse Switching	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.039 µF	85 °C	-55 °C	250 VDC	5 %	125 V
Panasonic Electronic Components ECW-U1683KC9	0.102 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.068 µF	125 °C	-55 °C	100 V	10 %	40 V
Panasonic Electronic Components ECW-U1473JC9	0.087 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	47 nF	125 °C	-55 °C	100 V	5 %	40 V
Panasonic Electronic Components ECW-U2823JC9	0.134 in	2420 (6050 Metric)	0.197 in	0.236 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.082 µF	125 °C	-55 °C	250 VDC	5 %	125 V
Panasonic Electronic Components ECW-U4333V17	0.157 in	2420 (6050 Metric)	0.197 in	0.236 in	Solder Pads	DC Filtering DC Link	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.033 µF	85 °C	-55 °C	400 V	5 %	157 V
Panasonic Electronic Components ECW-U2333JC9	0.118 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.033 µF	125 °C	-55 °C	250 VDC	5 %	125 V
Panasonic Electronic Components ECW-U1823JC9	0.118 in	1913 (4833 Metric)	0.13 in	0.189 in	Solder Pads	General Purpose	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.082 µF	125 °C	-55 °C	100 V	5 %	40 V
