MGV201610R33M-10
ActiveLaird Technologies EMI
FIXED IND 330NH 4.1A 29MOHM SMD
MGV201610R33M-10
ActiveLaird Technologies EMI
FIXED IND 330NH 4.1A 29MOHM SMD
Description
General part information
MGV201610R33M-10

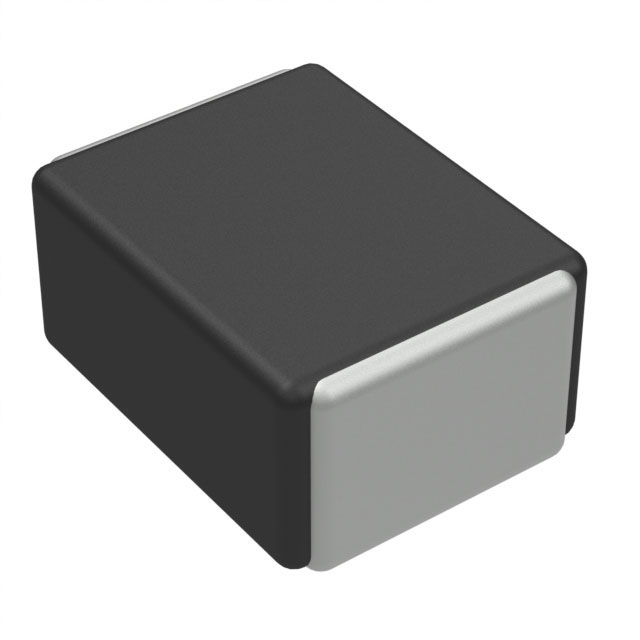

330 nH Shielded Molded Inductor 4.1 A 29mOhm Max 0806 (2016 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MGV201610R33M-10 |
|---|---|
| Current - Saturation (Isat) | 5 A |
| Current Rating | 4.1 A |
| DC Resistance (DCR) (Max) | 29 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 330 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
