FCA-SSCASCAS10
ActivePasternack
FIBER OPTIC PATCH CORD SM G652D
FCA-SSCASCAS10
ActivePasternack
FIBER OPTIC PATCH CORD SM G652D
Description
General part information
FCA-SSCASCAS10

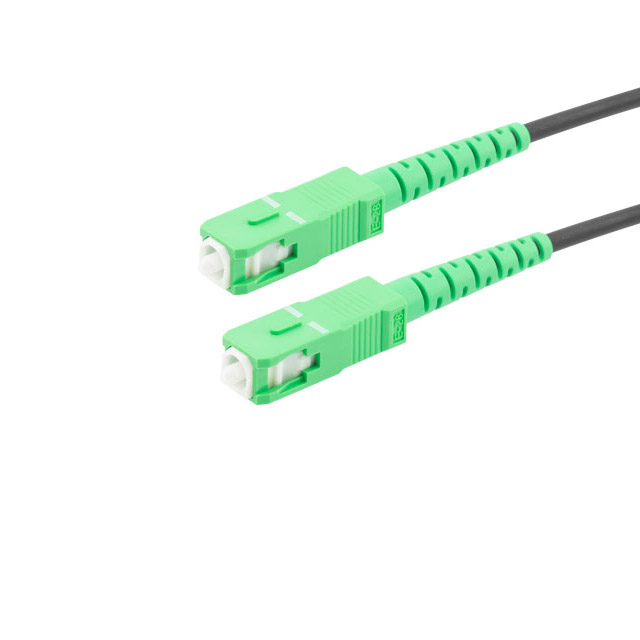

Cable Fiber Optic SC/APC To SC/APC 9/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCA-SSCASCAS10 |
|---|---|
| 1st Connector | SC/APC |
| 2nd Connector | SC/APC |
| Cable Diameter | 0.12 " |
| Cable Type | Fiber Patch |
| Color - Cable | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Type | OS2, Simplex, Singlemode |
