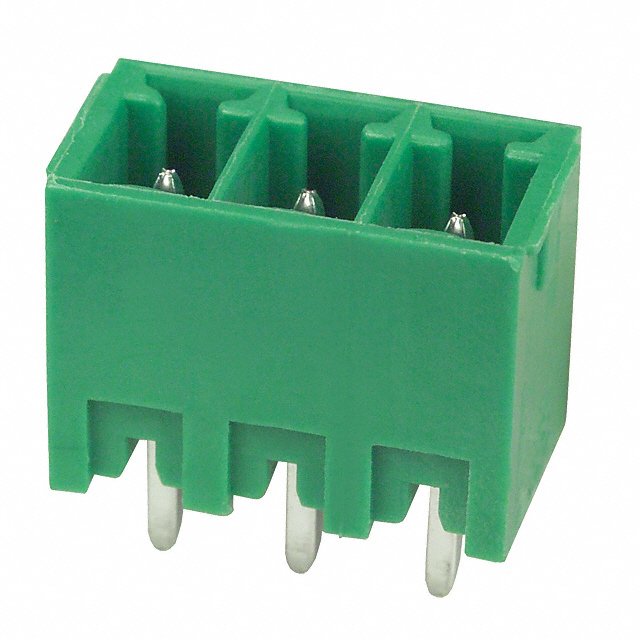

Specification	EDSTLZ1555/3

Contact Tail Length	0.134 in
Header Orientation	Vertical
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.134 in
Mounting Type	Solder, Through Hole
Number of Levels	1
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.15 in
Positions Per Level	3
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

EDSTL Series

...

Part	Insulation Height	Mounting Type	Housing Material	Contact Tail Length	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Termination Style	Type	Header Orientation Angle	Header Orientation	Positions Per Level	Number of Levels	Voltage - UL	Number of Positions	Header Orientation	Plug Wire Entry Angle	Material Flammability Rating
On Shore Technology Inc. EDSTLZ950/6	0.138 in	Solder Through Hole	Nylon PA Polyamide	0.138 in	-30 °C	105 °C	5.08 mm	Solder	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	6	1	300 V	6
On Shore Technology Inc. EDSTLZ1590/2	0.134 in	Solder Through Hole	PBTP Polybutylene Terephthalate	0.134 in	-30 °C	105 °C	0.15 in	Solder	Header Male Pins Shrouded (4 Side)			2	1	300 V	2	45 °	45 °
On Shore Technology Inc. EDSTL971/12	0.138 in	Solder Through Hole	Nylon PA Polyamide	0.138 in	-30 °C	105 °C	0.197 in	Solder	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	24	2	300 V	24 pos
On Shore Technology Inc. EDSTL951/3	0.138 in	Solder Through Hole	Nylon PA Polyamide	0.138 in	-30 °C	105 °C	0.197 in	Solder	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	3	1	300 V	3			UL94 V-0
On Shore Technology Inc. EDSTLZ1590/12	0.134 in	Solder Through Hole	PBTP Polybutylene Terephthalate	0.134 in	-30 °C	105 °C	0.15 in	Solder	Header Male Pins Shrouded (4 Side)			12	1	300 V	12	45 °	45 °
On Shore Technology Inc. EDSTLZ1550/10	0.276 in	Solder Through Hole	Nylon PA Polyamide	0.138 in	-30 °C	105 °C	0.15 in	Solder	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	10	1	300 V	10
On Shore Technology Inc. EDSTLZ1590/18	0.134 in	Solder Through Hole	PBTP Polybutylene Terephthalate	0.134 in	-30 °C	105 °C	0.15 in	Solder	Header Male Pins Shrouded (4 Side)			18	1	300 V	18	45 °	45 °
On Shore Technology Inc. EDSTL976/12	0.154 in	Solder Through Hole	Nylon PA Polyamide	0.154 in	-30 °C	105 °C	0.197 in	Solder	Header Male Pins Shrouded (4 Side)		Vertical	24	2	300 V	24 pos
On Shore Technology Inc. EDSTLZ965/12	0.154 in	Through Hole	Nylon PA Polyamide	0.154 in	-30 °C	105 °C	0.3 in	Solder	Header Male Pins Shrouded (4 Side)		Vertical	12	1	300 V	12
On Shore Technology Inc. EDSTL950/24	0.138 in	Solder Through Hole	Nylon PA Polyamide	0.138 in	-30 °C	105 °C	0.197 in	Solder	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	24	1	300 V	24 pos
