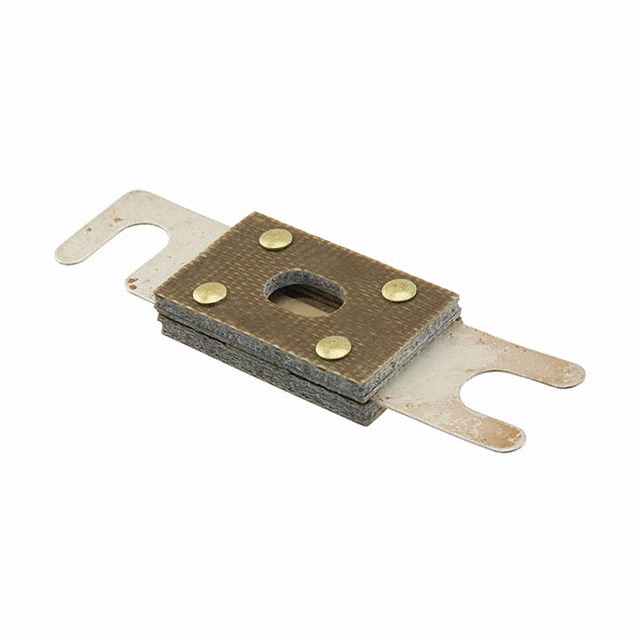

ANL-150
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, ANL SERIES, 150 A, 32 VAC, 80 VDC, 22MM X 81MM, 0.88" X 3.19"
ANL-150
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, ANL SERIES, 150 A, 32 VAC, 80 VDC, 22MM X 81MM, 0.88" X 3.19"
Description
General part information
ANL-150
150A 80 VDC Fuse Fuse Strip Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANL-150 |
|---|---|
| Applications | Lift Trucks |
| Approval Agency | UR |
| Breaking Capacity | 2.7 kA |
| Current Rating | 150 A |
| Features | Indicating |
| Fuse Type | Fuse Strip |
| Mounting Type | Bolt Mount |
| Package / Case | Rectangular, Blade |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.874 in |
| Size / Dimension Length | 3.189 in |
| Voltage Rating - DC | 80 VDC |
