Description
General part information

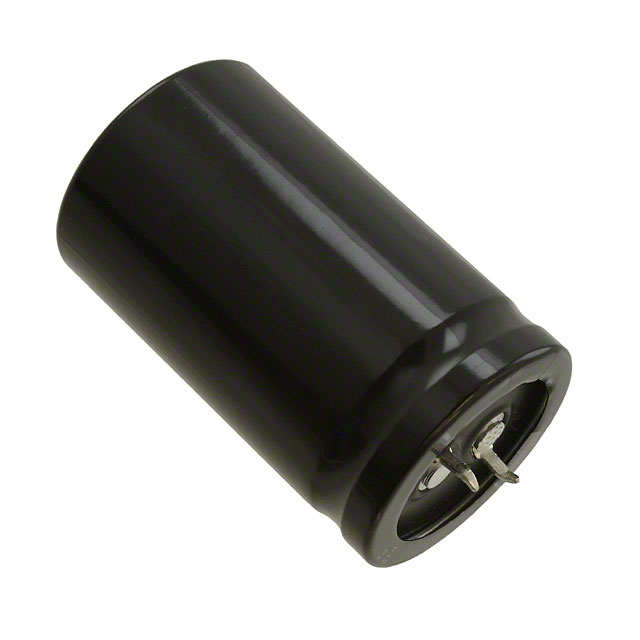

LLS1C473MELB
47000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LLS1C473MELB |
|---|---|
| Applications | General Purpose |
| Capacitance | 47000 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 6.93 A, 7.9695 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
