ActiveTE Connectivity AMP Connectors

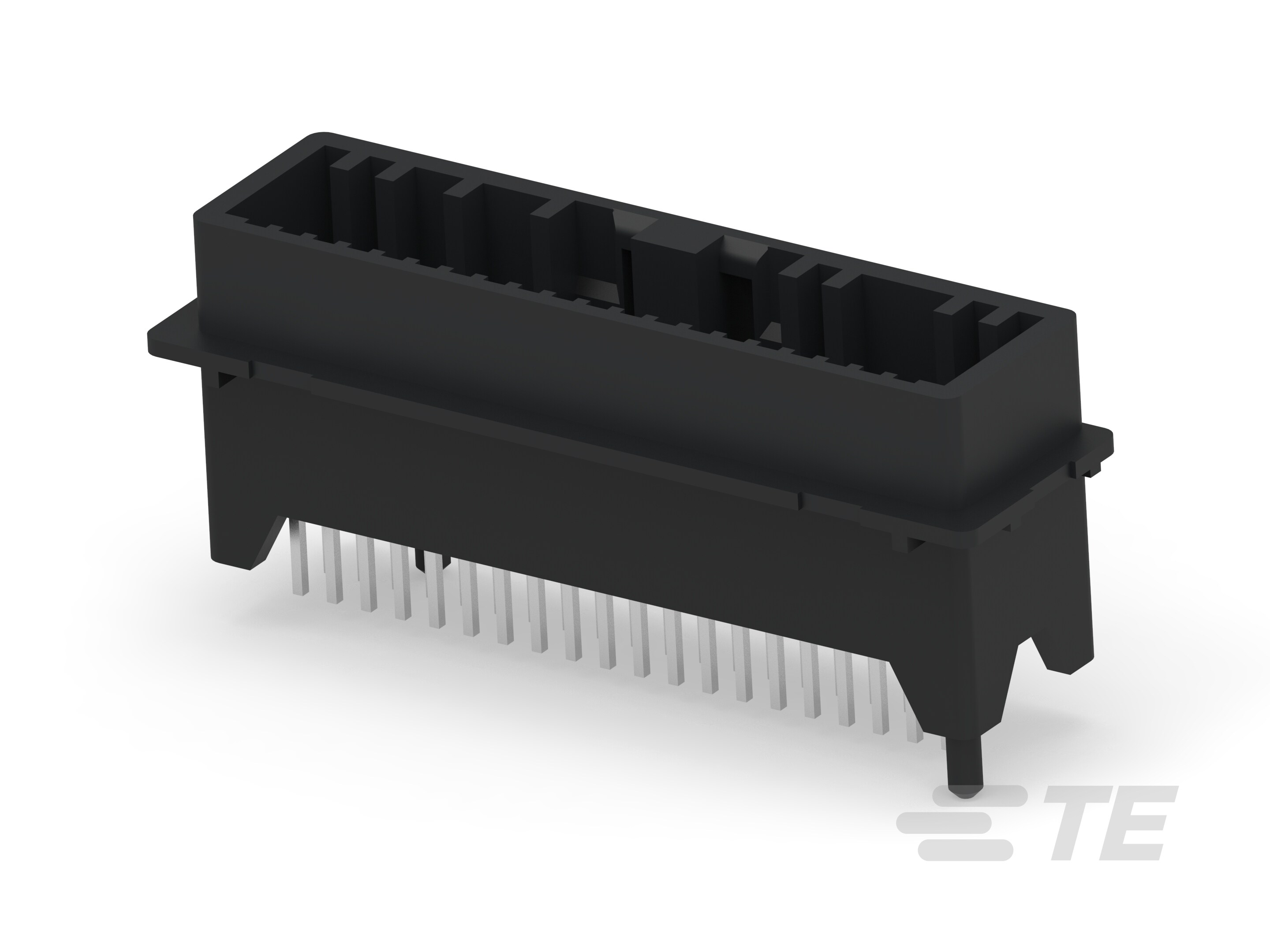

40P 025 HEADER ASSY BLACK
2237025-1
ActiveTE Connectivity AMP Connectors
40P 025 HEADER ASSY BLACK
Description
General part information
0.64/025 Connector System Series
Vertical, Wire-to-Board, 40 Position, 2 Rows, 2.2mm [.087in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Black, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 2237025-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.226 in |
| Contact Length - Post | 0.102 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.795 in |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.087 in |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
