589L400X2CAT
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 40.0000MHZ HCMOS
589L400X2CAT
ActiveCTS-Frequency Controls
XTAL OSC VCTCXO 40.0000MHZ HCMOS
Description
General part information
589L400X2CAT

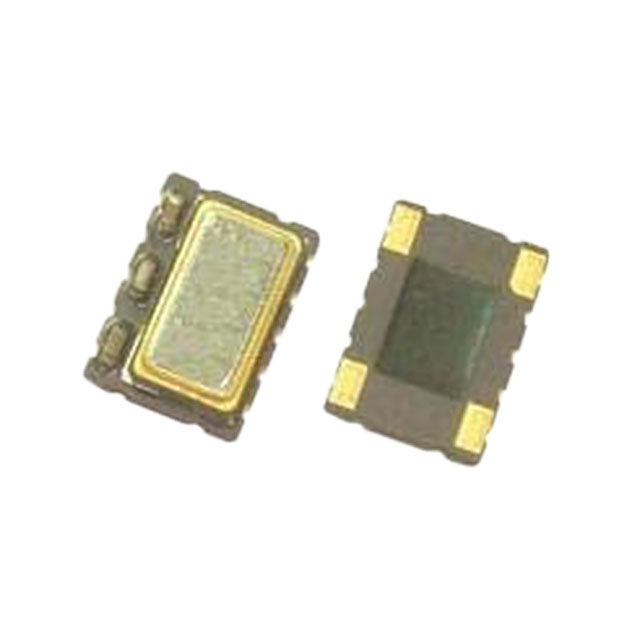

40 MHz VCTCXO HCMOS Oscillator 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 589L400X2CAT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 6 mA |
| Frequency | 40 MHz |
| Frequency Stability | 140 ppb |
| Height - Seated (Max) | 0.083 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
