FODLC-BL-03
ActivePasternack
CA LC-LC 62.5/125 DPX BLUE 3M
FODLC-BL-03
ActivePasternack
CA LC-LC 62.5/125 DPX BLUE 3M
Description
General part information
FODLC-BL-03

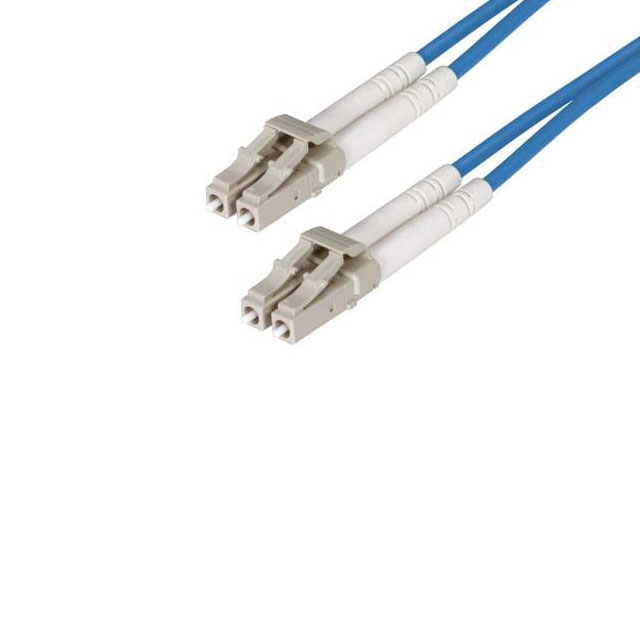

Cable Fiber Optic LC Duplex To LC Duplex 62.5/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FODLC-BL-03 |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Cable Diameter | 0.12 " |
| Color - Cable | Blue |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 9.8 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Multimode, OM1, Duplex |
