XPGDWT-H1-0000-00HE8-SB01

Active

New Energy

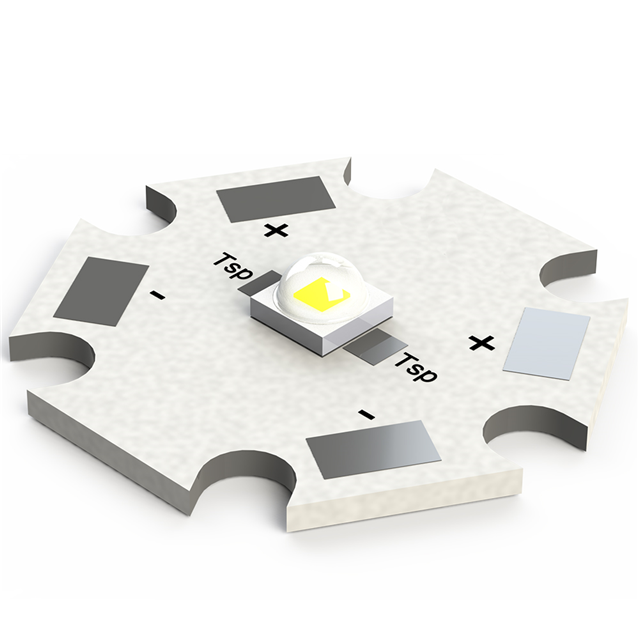

LED MOD XP-G3 WHT STARBRD 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD XP-G3 WHT STARBRD 2700K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XP-G3 White, Warm Starboard

Technical documentation and resources

Specification	XPGDWT-H1-0000-00HE8-SB01	XPGDWT Series

CCT (K)	2700 K	2700 - 6500 K
Color	White, Warm	White, Warm, Cool
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	80	70 - 80
Current - Max [Max]	2 A	2 A
Current - Test	350 mA	350 mA
Height [z]	2.3 mm	2.3 mm
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	151 lm/W	151 - 176 lm/W
Luminous Flux @ Current/Temperature	144 lm	144 - 168 lm
Luminous Flux @ Current/Temperature [Max]	148 lm	148 lm
Luminous Flux @ Current/Temperature [Min]	139 lm	139 lm
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	2.73 V	2.73 V

Part	Type	Lumens/Watt @ Current - Test	Current - Test	Lens Type	CCT (K)	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Height [z]	Temperature - Test	Size / Dimension [diameter]	Configuration	Viewing Angle	Current - Max [Max]	CRI (Color Rendering Index)
New Energy XPGDWT-H1-0000-00H8E-SB01	LED Module	151 lm/W	350 mA	Domed	2700 K	2.73 V	Warm, White	139 lm	148 lm	144 lm	2.3 mm	85 °C	19.89 mm	Starboard	125 °	2 A	80
New Energy XPGDWT-01-0000-00LE1-SB01	LED Module	176 lm/W	350 mA	Domed	6500 K	2.73 V	Cool, White			168 lm	2.3 mm	85 °C	19.89 mm	Starboard	125 °	2 A	70
New Energy XPGDWT-H1-0000-00HE8-SB01	LED Module	151 lm/W	350 mA	Domed	2700 K	2.73 V	Warm, White	139 lm	148 lm	144 lm	2.3 mm	85 °C	19.89 mm	Starboard	125 °	2 A	80
