B82476B1332M100
ActiveEPCOS - TDK Electronics
FIXED IND 3.3UH 5.9A 13.5MOHM SM
B82476B1332M100
ActiveEPCOS - TDK Electronics
FIXED IND 3.3UH 5.9A 13.5MOHM SM
Description
General part information
B82476B1332M100

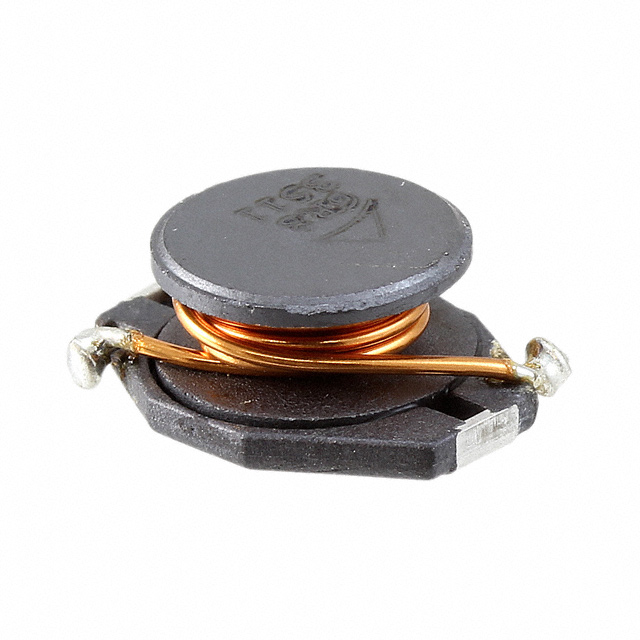

3.3 µH Unshielded Drum Core, Wirewound Inductor 5.9 A 13.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82476B1332M100 |
|---|---|
| Current - Saturation (Isat) | 6.4 A |
| Current Rating | 5.9 A |
| DC Resistance (DCR) (Max) | 13.5 mOhm |
| Height - Seated (Max) | 0.2 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
